Upload BIM Models through the Revit PlanRadar Plugin

Overview

This plugin allows you to smoothly integrate and manage your BIM models from Revit to PlanRadar. You don't need to switch application and can save time.

Download the Revit PlanRadar plugin from the Autodesk App Store: https://apps.autodesk.com.

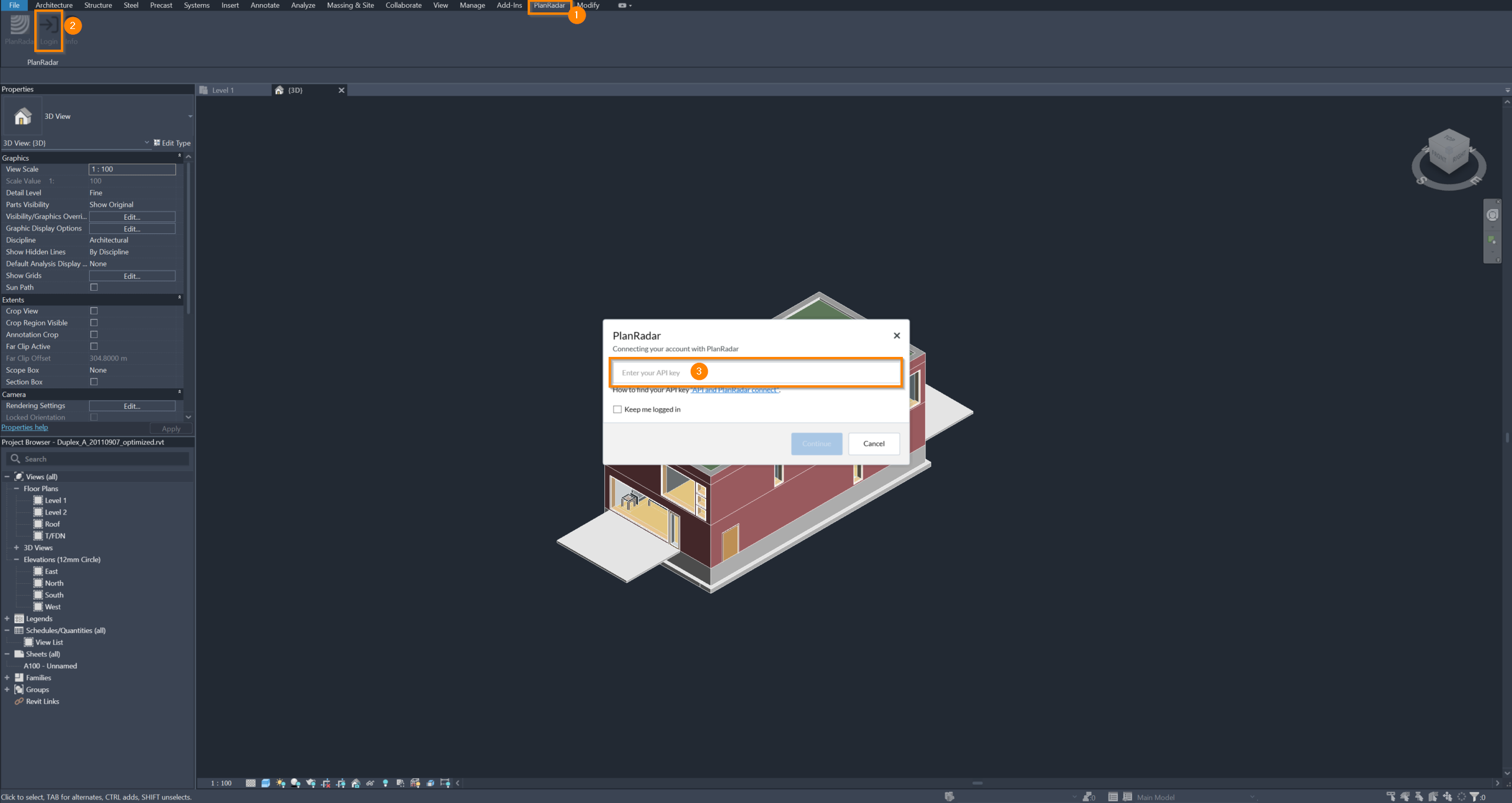

Log in via API Key

1. Click the PlanRadar tab.
2. Click login
3. Enter your API Key. Read more about how to get your API key in Personal Access Tokens.

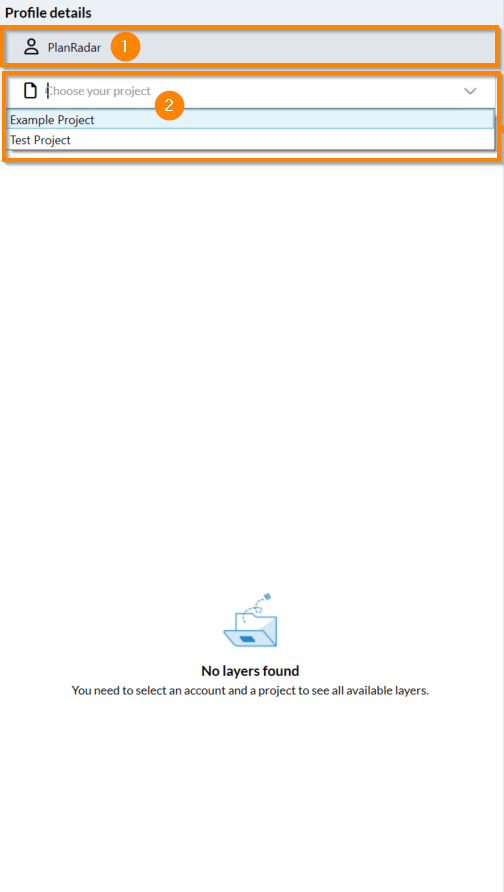

Select an Account and choose a Project

1. Select the desired account e.g. PlanRadar from the list of available accounts.
2. In the project selection dropdown choose your desired project

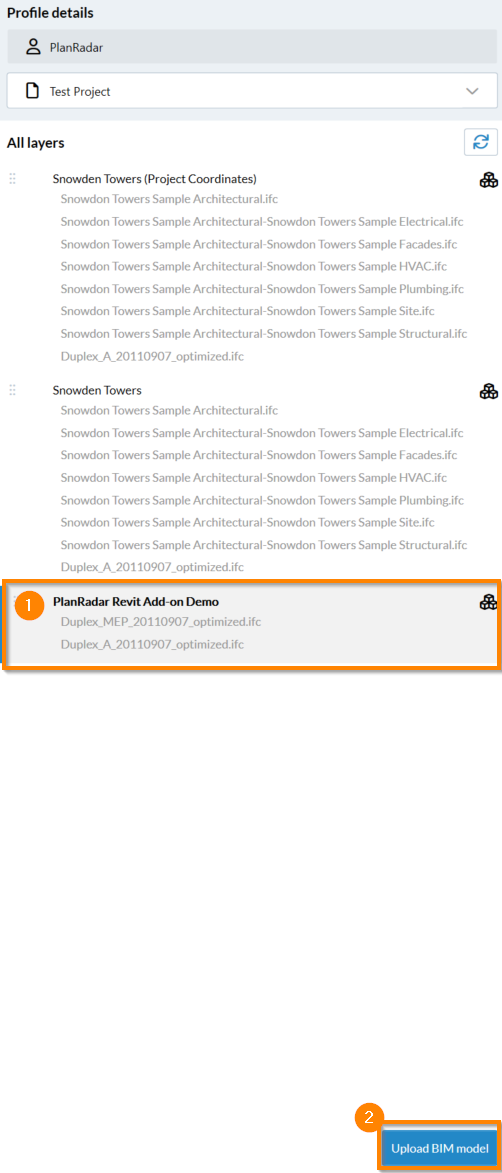

Upload a BIM Model to a Layer

Within your selected project, there will be a list of layers.
The currently viewed model will be uploaded to the layer as an IFC file.

1. Select the layer where you want to upload your BIM model.
2. Click Upload BIM model.

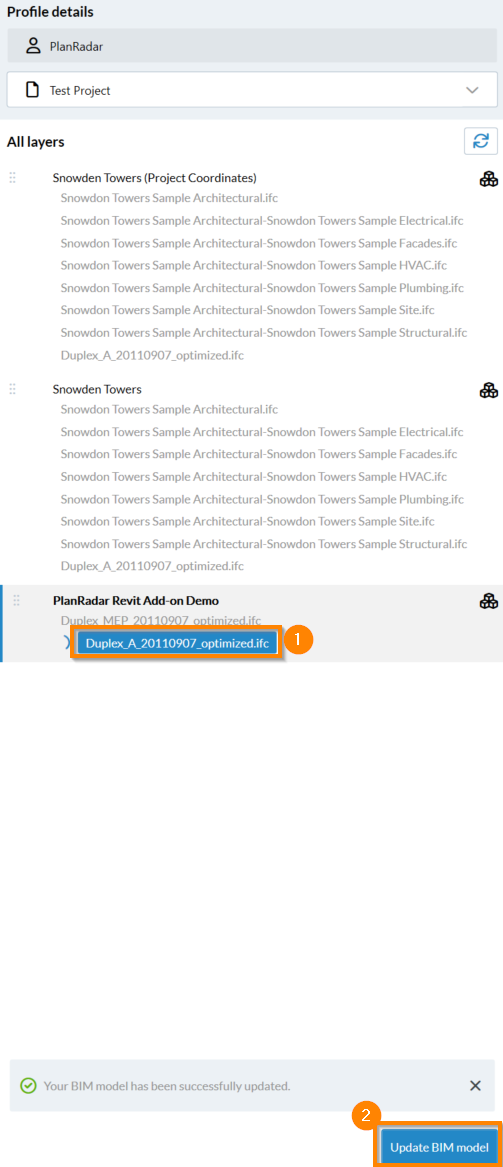

Update an existing BIM Model within a Layer

To update an existing model you have to select it in the BIM model list.
This will replace the old model with the currently viewed one.

1. Look for the list of BIM models within a layer and tap on the desired BIM model.
2. Click Update BIM model.

Always ensure you have a backup of your models on your local storage before making any updates.
