Add Ticket Tables to Ticket Reports (Advanced)

Overview

When creating advanced ticket report templates, ticket content is typically designed within the "TICKETS" page as it provides full freedom regarding layout, dynamic attributes, paragraph and text styling options. Also see  Manage Pages in Advanced Ticket Report Templates and Create Advanced Ticket Report Templates.

In addition to the "TICKETS" page you can add generated ticket tables to custom pages. This can be useful if you want to:

• Group tickets of a form by a field (e.g. layer or category)
• Add an additional summary table for tickets of a particular form before or after the ticket pages showing more information about each ticket.
• Number tickets in a sequence starting from 1.
• Dynamically define colours for content based on ticket data (e.g. status colours).
• Have a compact table with one ticket per row (and no space in-between).

Each ticket table is based on a ticket form, allowing you to map the form fields to columns in the table and group the tickets by one of those fields.

Note that paragraph and text styling, dynamic attributes, adding plans, full control of photo layouts, etc. is not available for ticket tables.

Add a Ticket Table

As described in Create Advanced Ticket Report Templates in detail, when you create or edit an advanced ticket report template, you can navigate to a custom page (or create a new one) and add ticket tables to your content.

To do so:

1. Hover over Templates
2. Click Ticket Reports

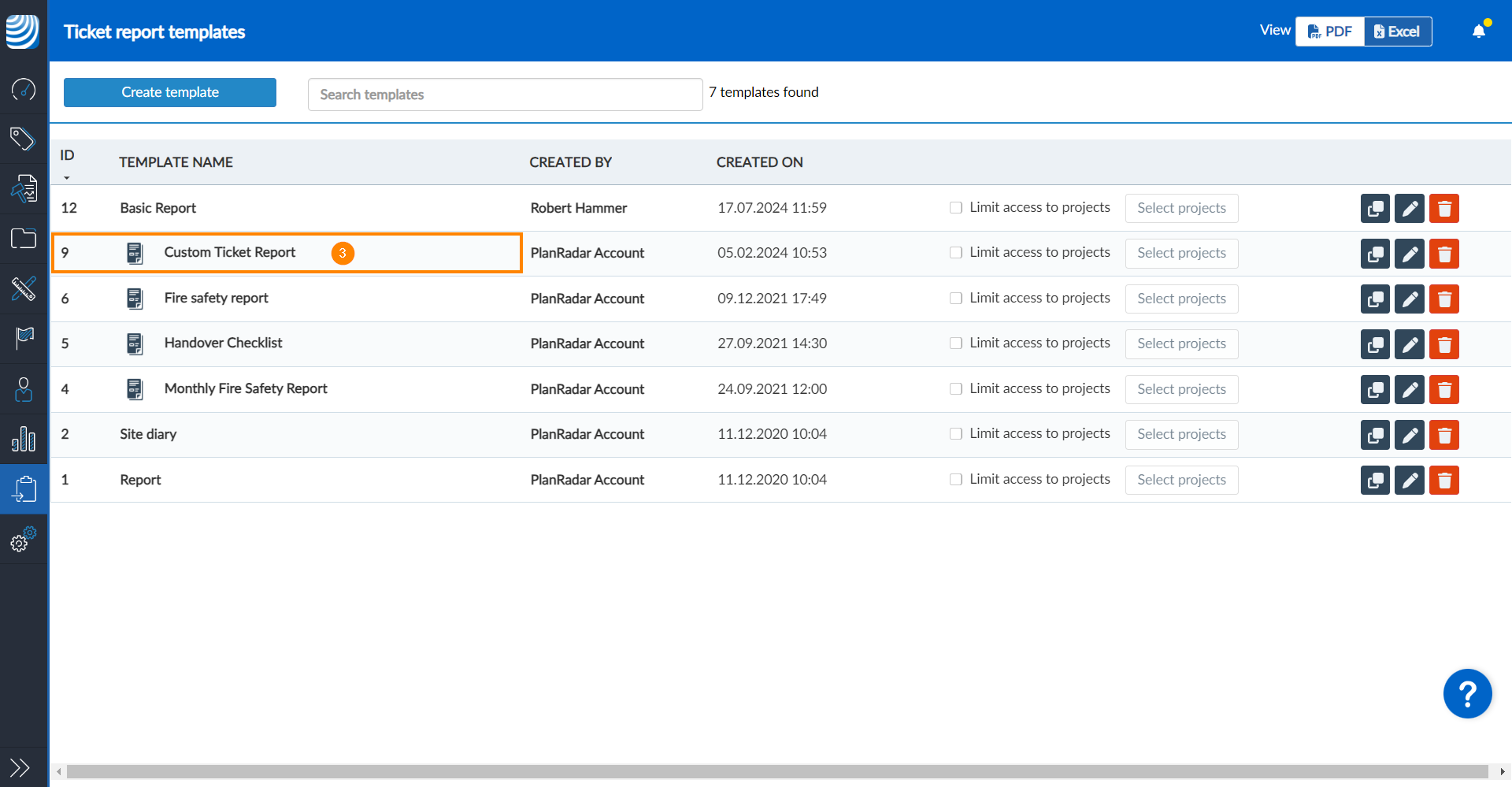

3. Click on a template to edit it (or create a new one) e.g. Custom Ticket Report

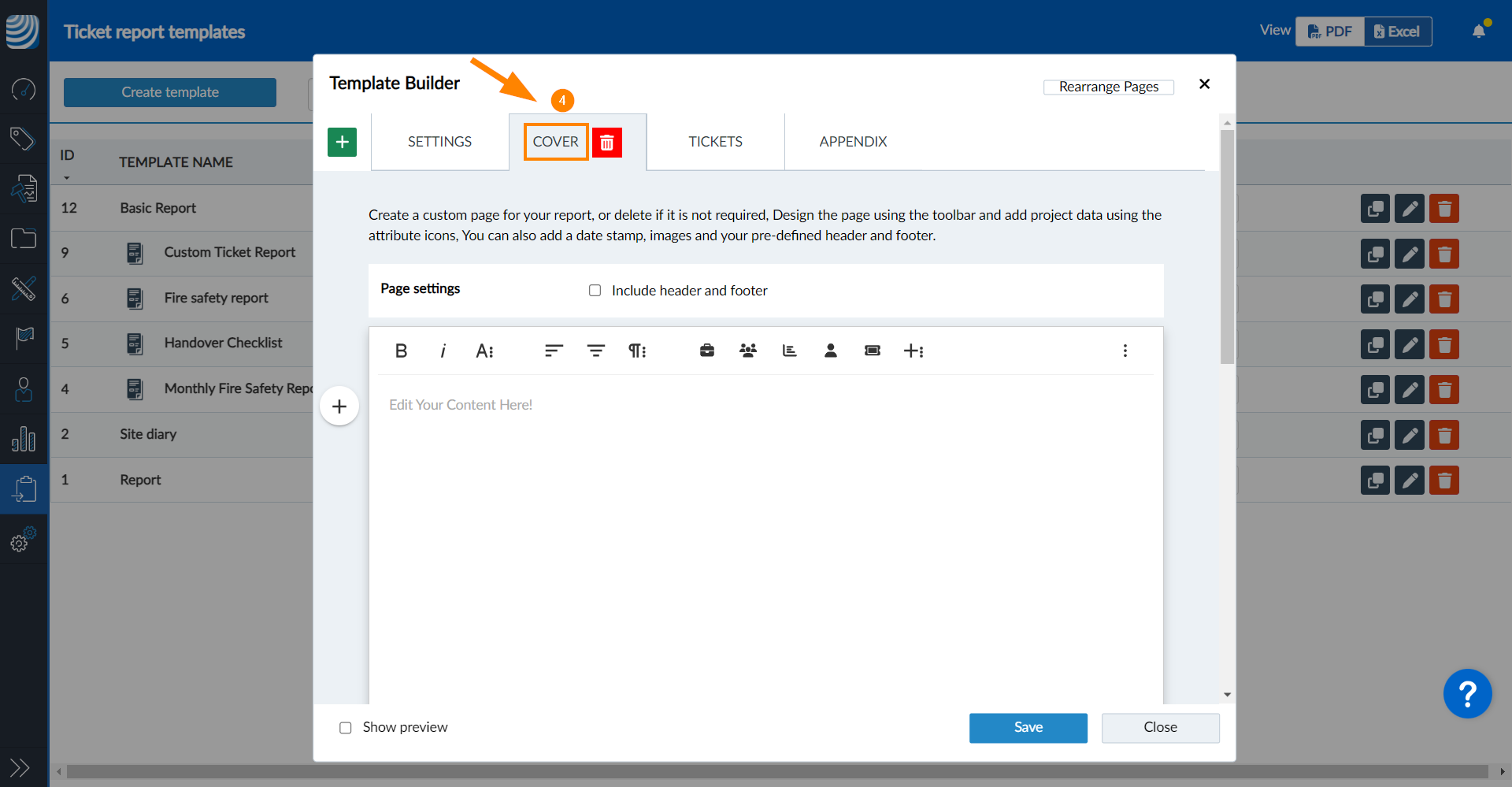

4. Click on the custom page you want to edit e.g. Cover

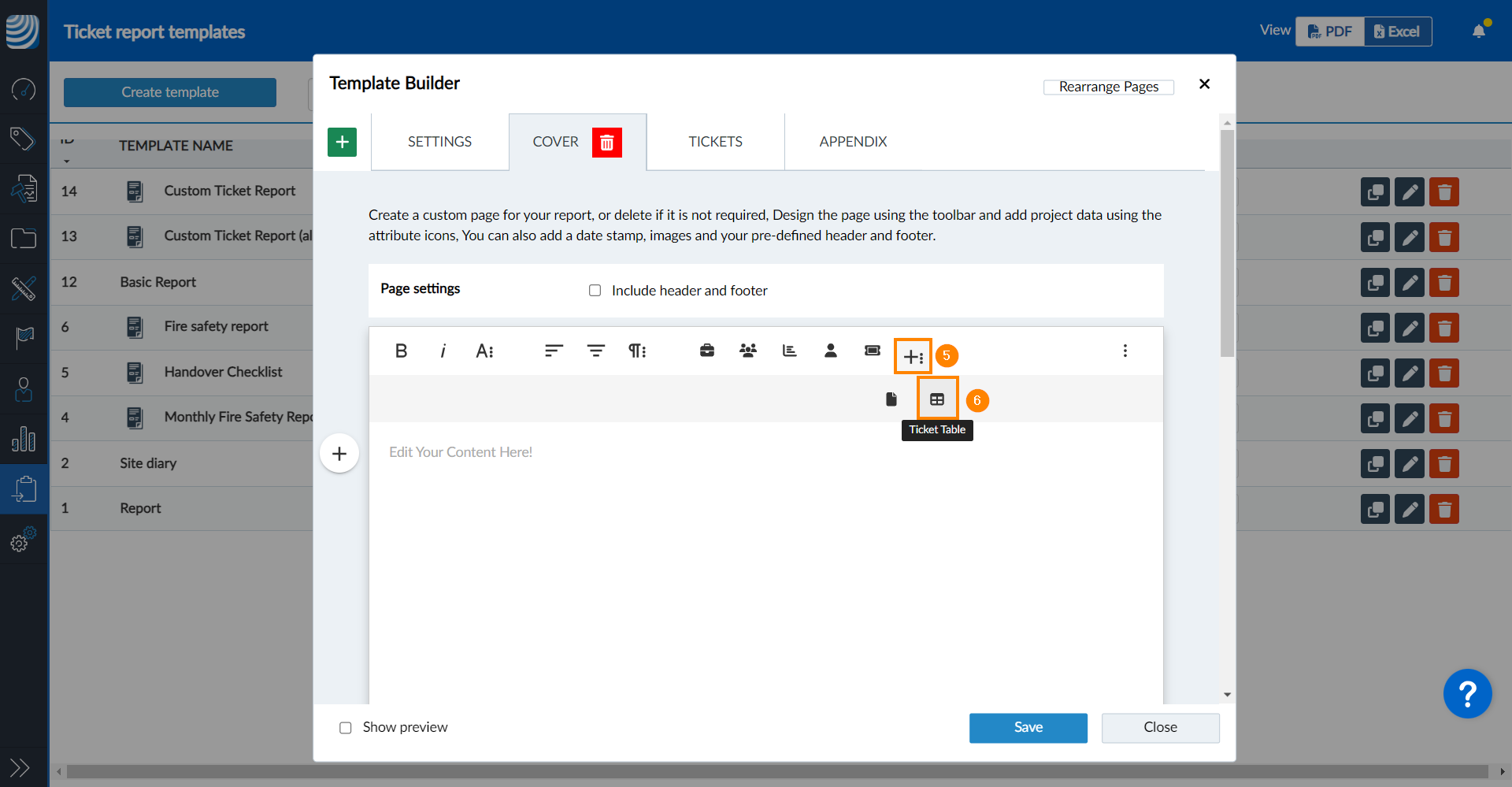

5. Click More Rich
6. Click Ticket Table


Configure a Ticket Table

Once you have added a ticket table as described above, you can configure it to define what data is included and how it is displayed.

• Add multiple columns and map form attributes (e.g. ID, title, author, layer, form, form fields) to each column.
• If required, add an automatic index column and append ticket photos below the table.
• Table outlines are shown by default but can be hidden.
• Define how tickets are grouped and sorted.

To do so:

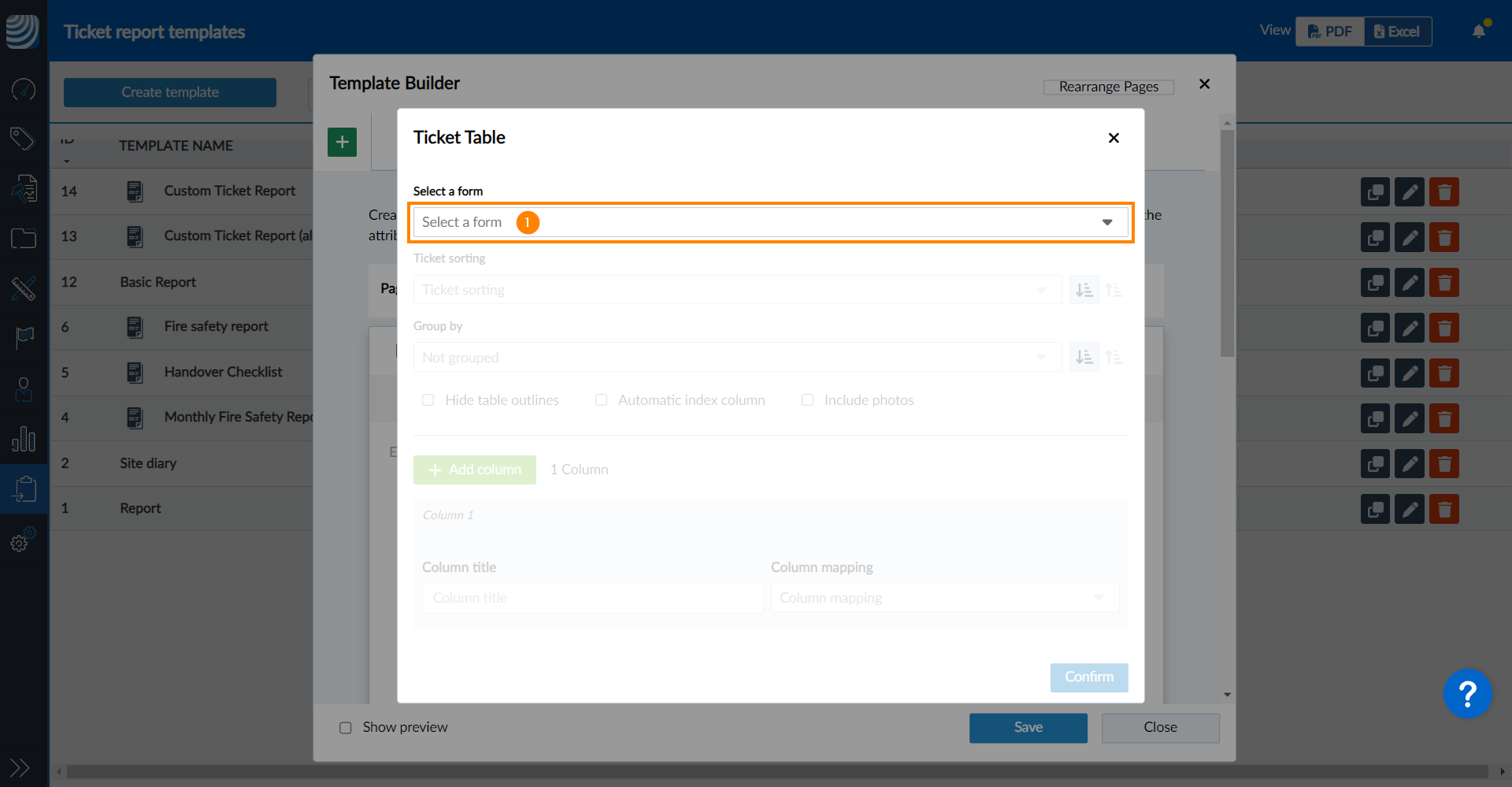

1. Select a form in the drop-down

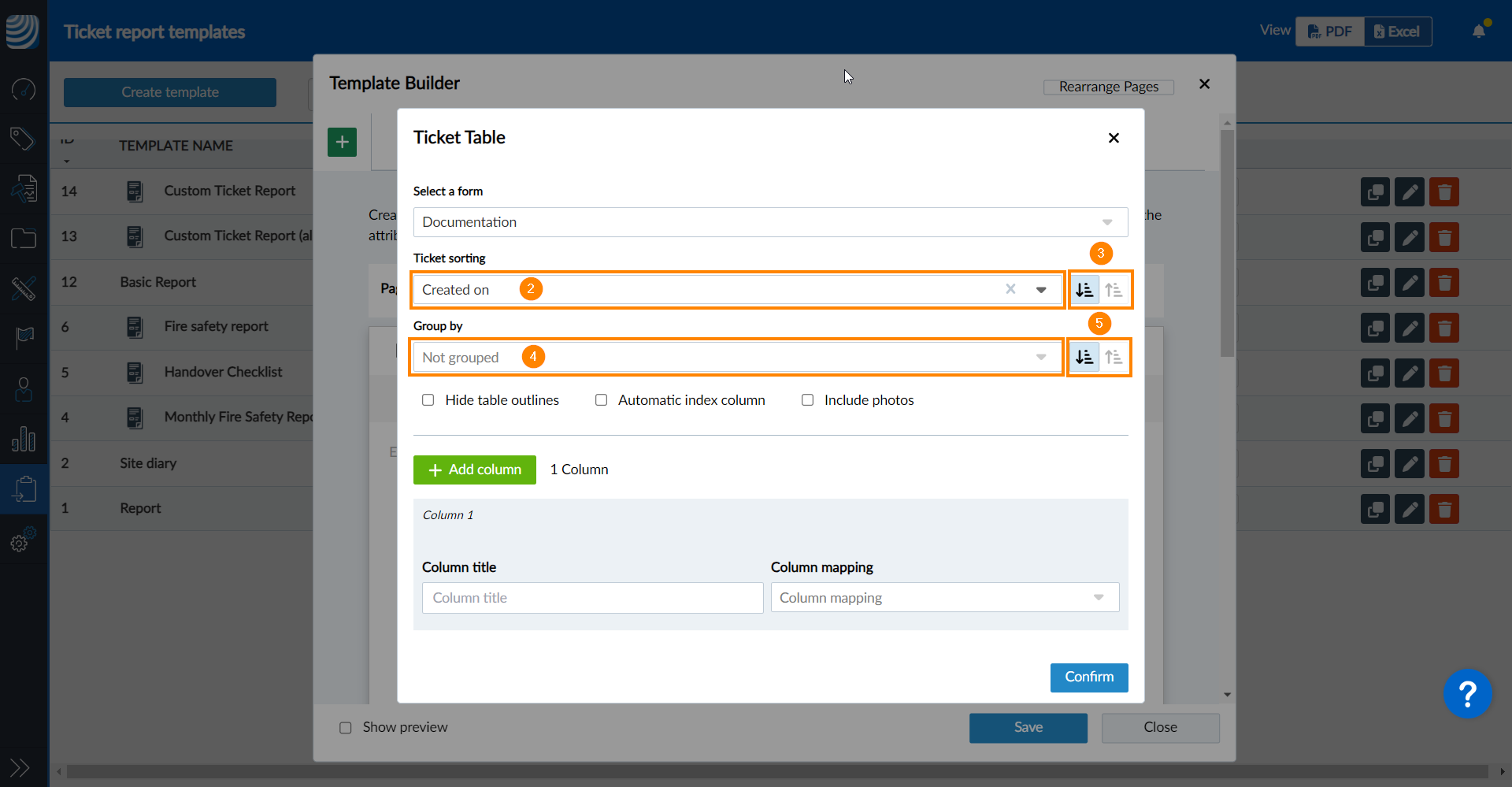

2. Select a form attribute in the Ticket sorting drop-down to sort tickets within their group.
3. Switch between Ascending or Descending sorting order for the tickets.
4. Select a form attribute in the Group by drop-down to group tickets by it.
5. Switch between Ascending or Descending sorting order for the groups.

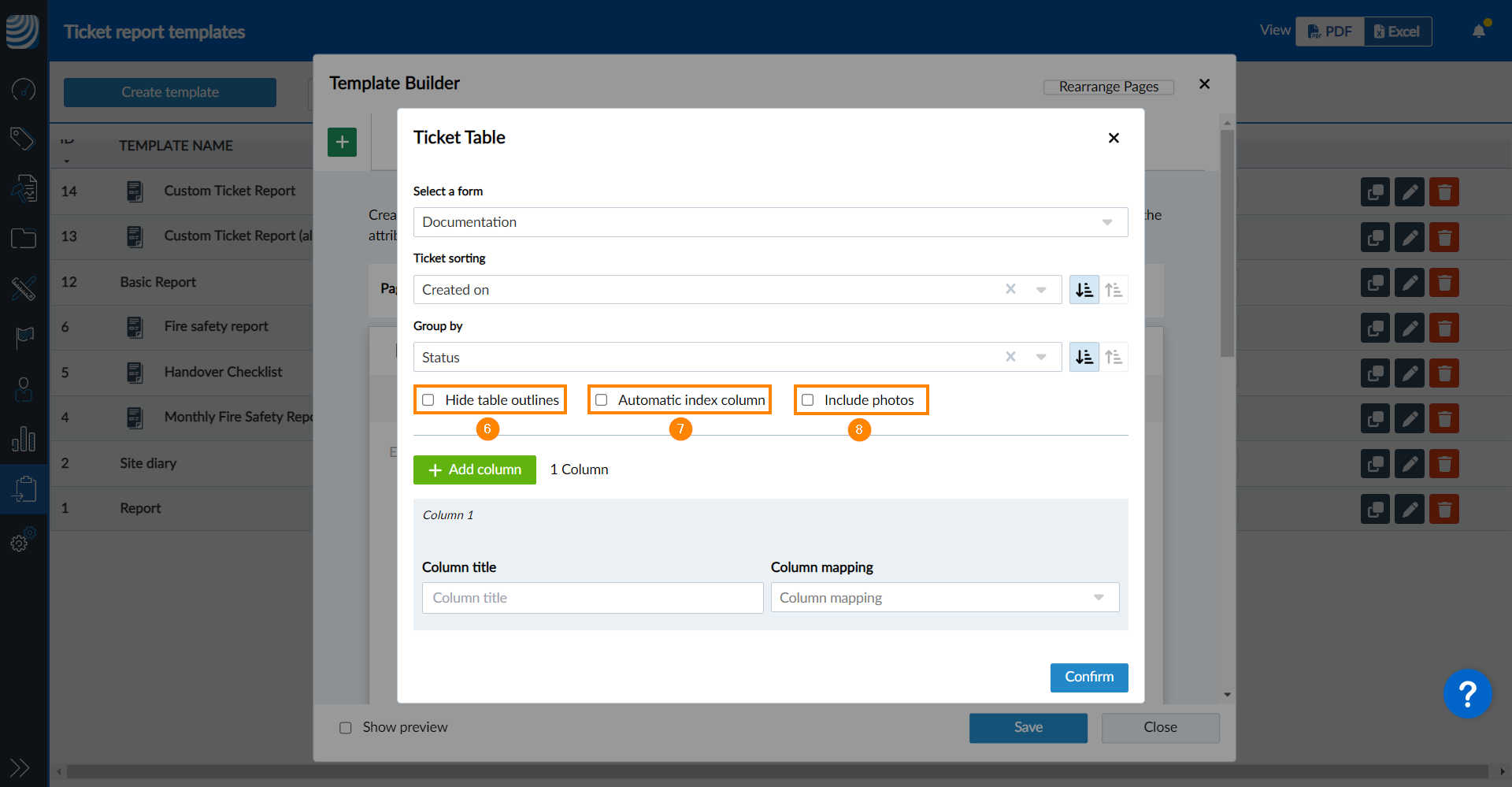

6. Select/clear the Hide table outlines checkbox.
7. Select/clear the Automatic index column checkbox.
8. Select/clear the Include photos checkbox.

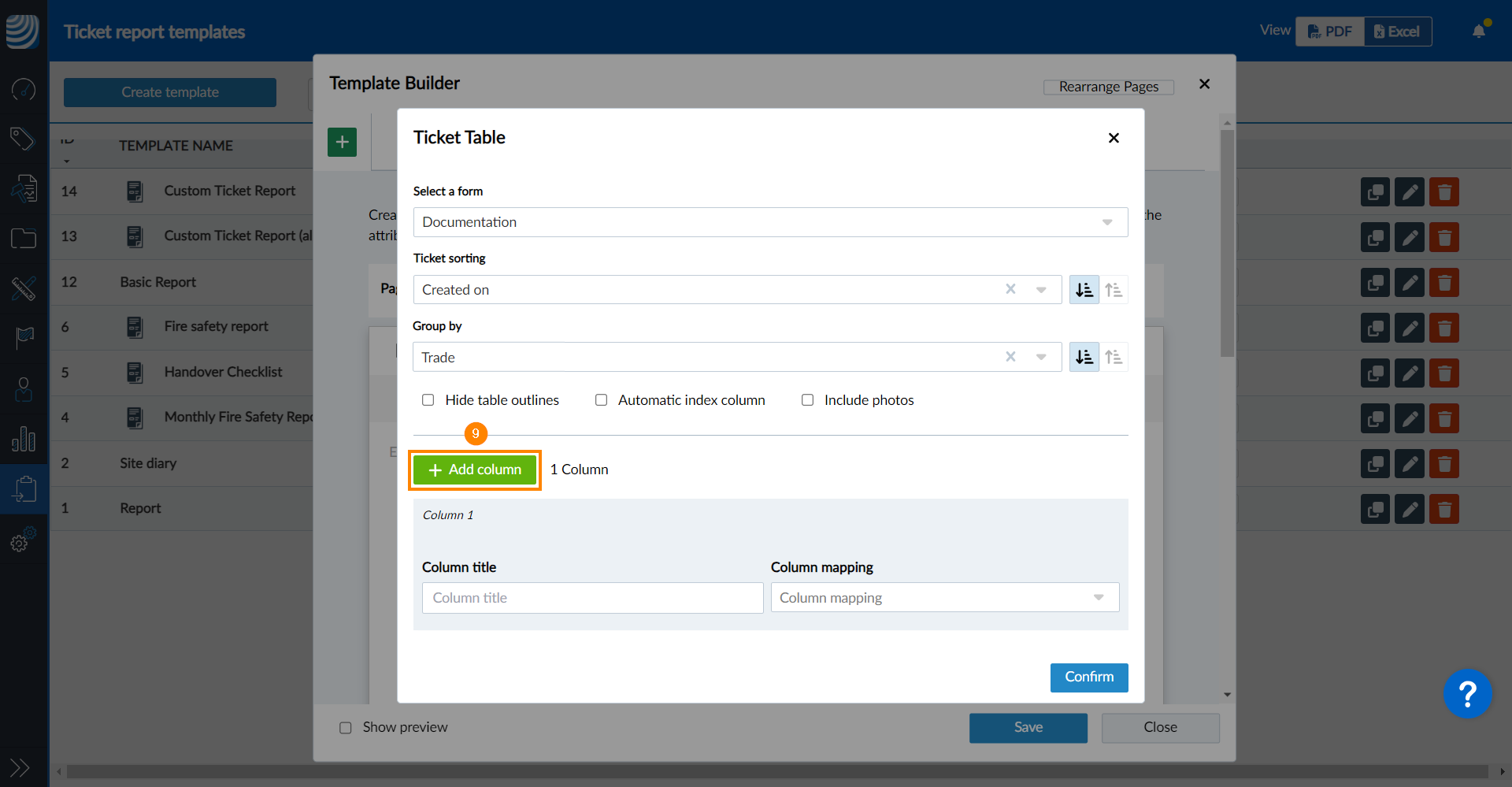

9. Click + Add column to add one or more columns to your table, which will be placed below the existing columns.

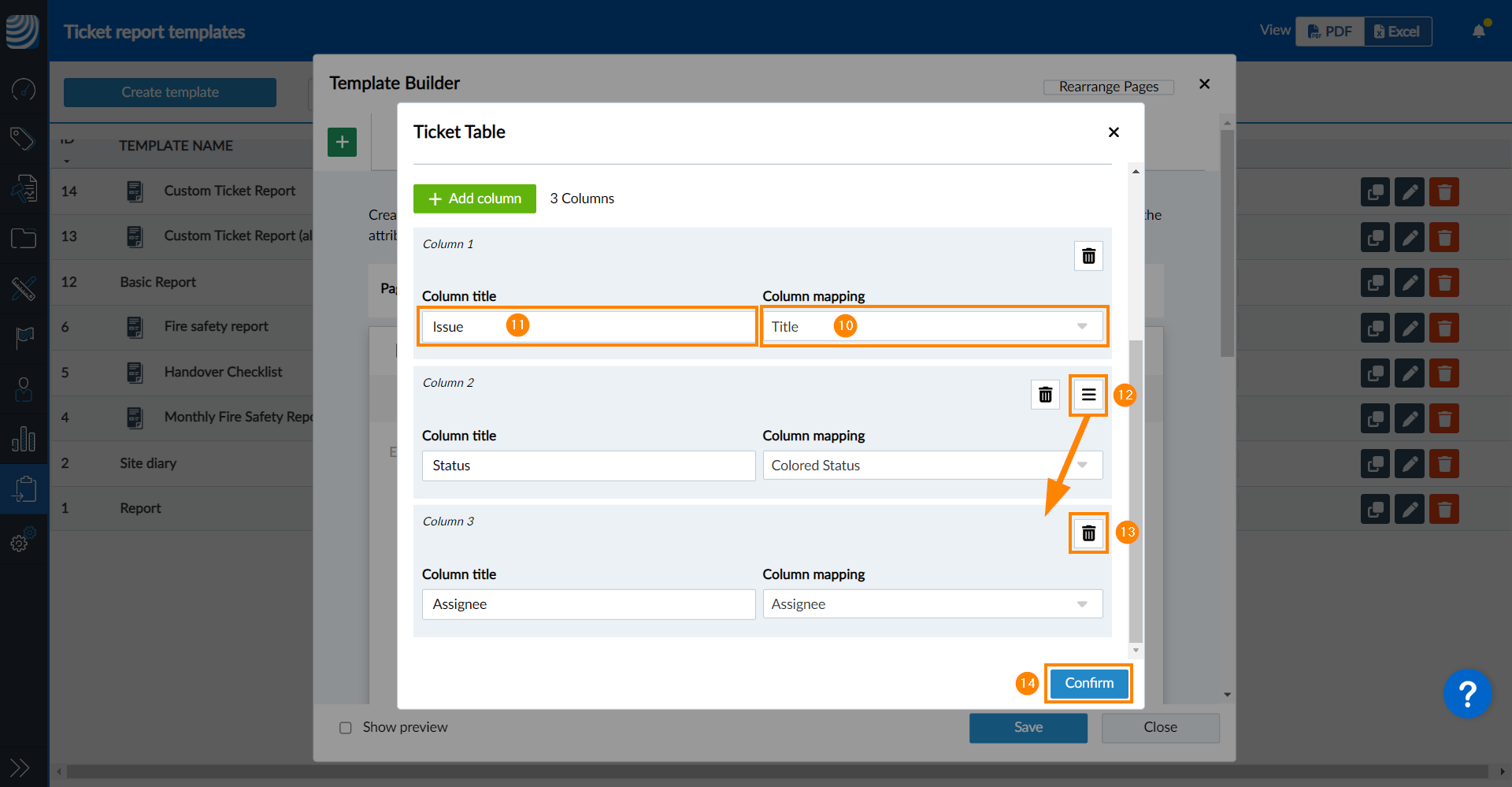

10. Select a form attribute in the Column mapping drop-down to map its contents to the column.
11. Optional: Enter a Column title if you don't want to use the form attribute name.
    Repeat both of these steps for each column.
12. Optional: Drag and drop the Order icon to change the order of columns.
13. Optional: Click the Delete icon to delete a column.
14. Click Confirm

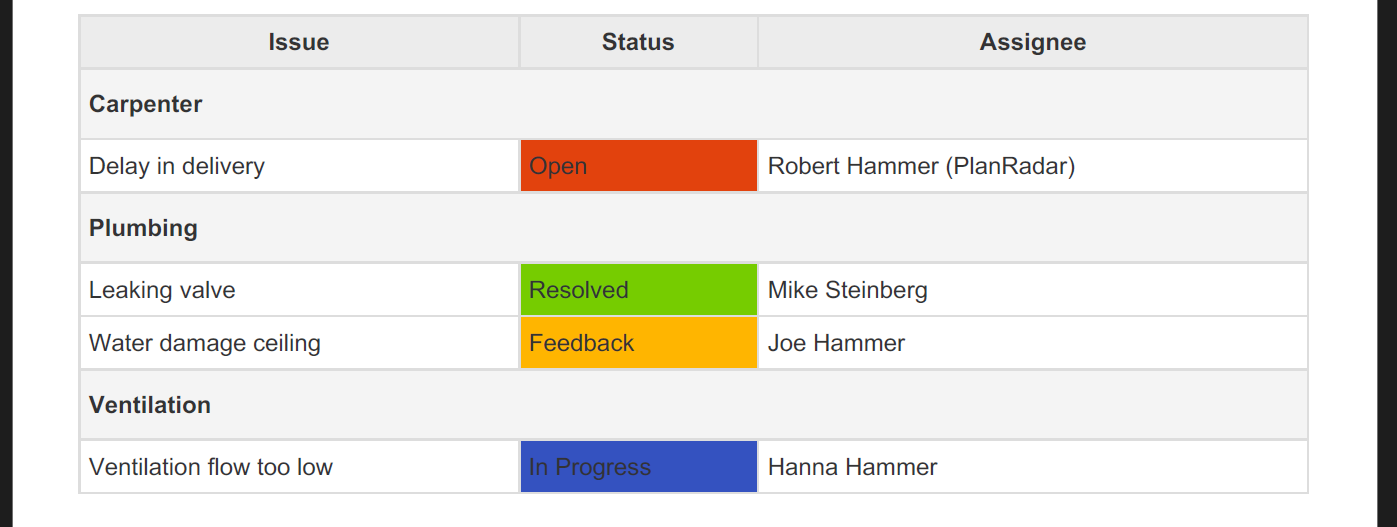

15. Example of a ticket table as it might look in a report:


Customise Cells

There are more advanced ways to customise your cells than just mapping a form attribute as described above. Custom input allows you to map multiple form attributes to a single cell and add text and HTML tags for formatting if required.

To do so:

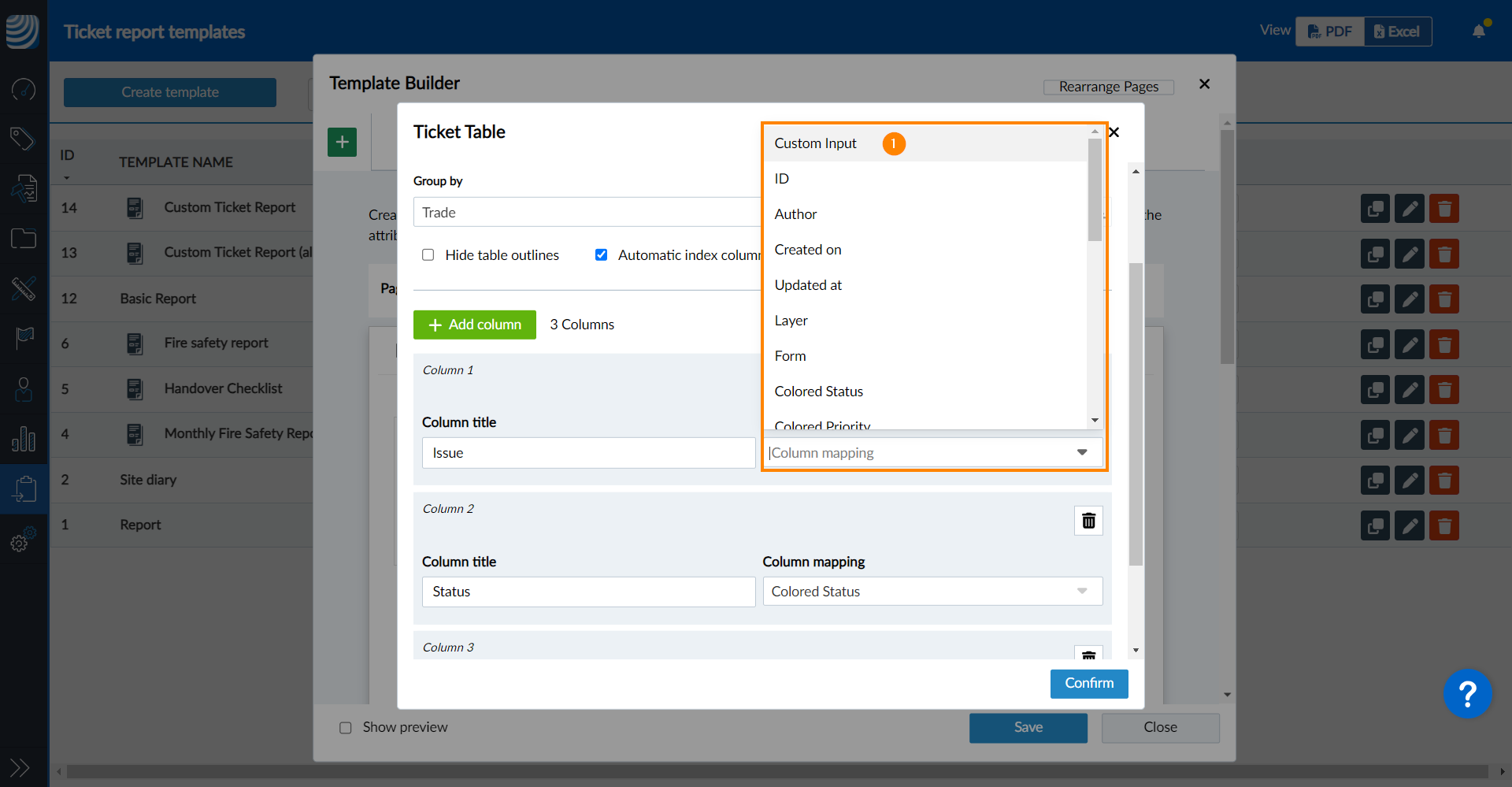

1. Select Custom Input in the Column mapping drop-down

2. Use the text input field to specify the content and format of the cell.

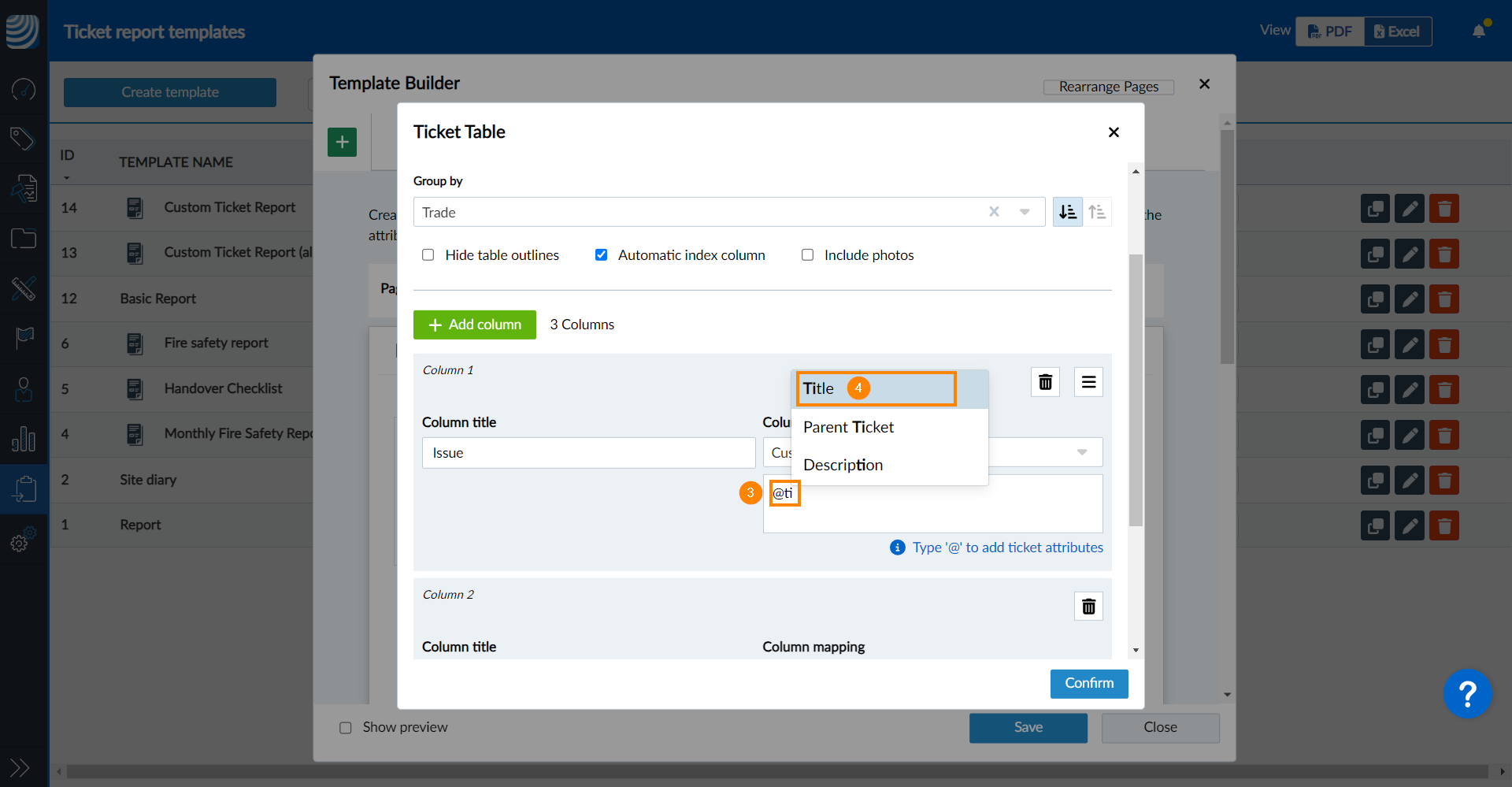

3. For example type: '@ti' to see a list of all the attributes that match your text input.
4. Click on the attribute, e.g. Title, to add it as a placeholder in the text input field.

5. Placeholders have a blue background.

6. Add additional placeholders, text or HTML tags e.g. like <h4>Text</h4> to apply Headline 4 formatting to your text. You can also add multiple attribute placeholders within a cell.

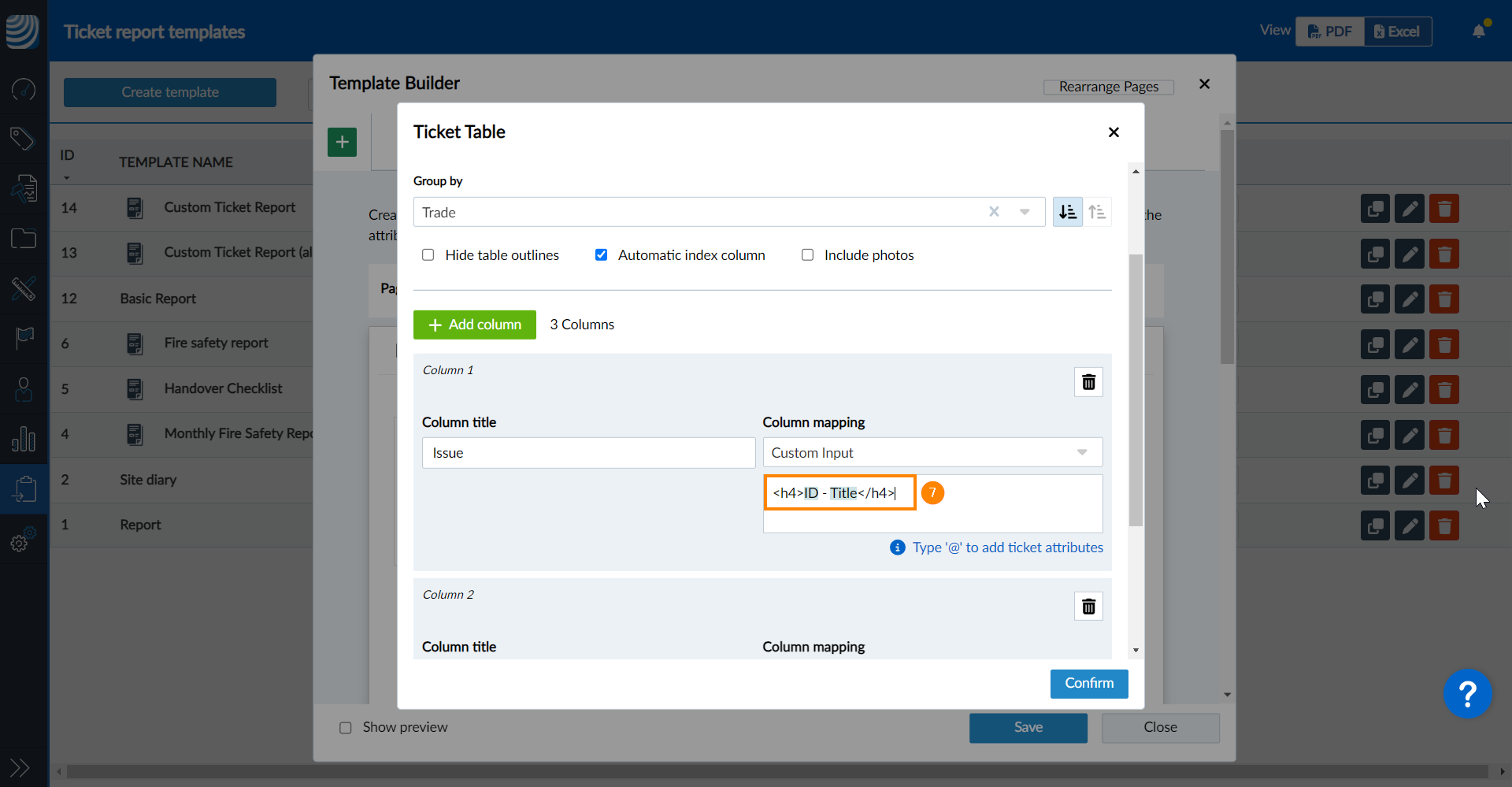

7. Example of custom text entry: <h4>ID - Title</h4>

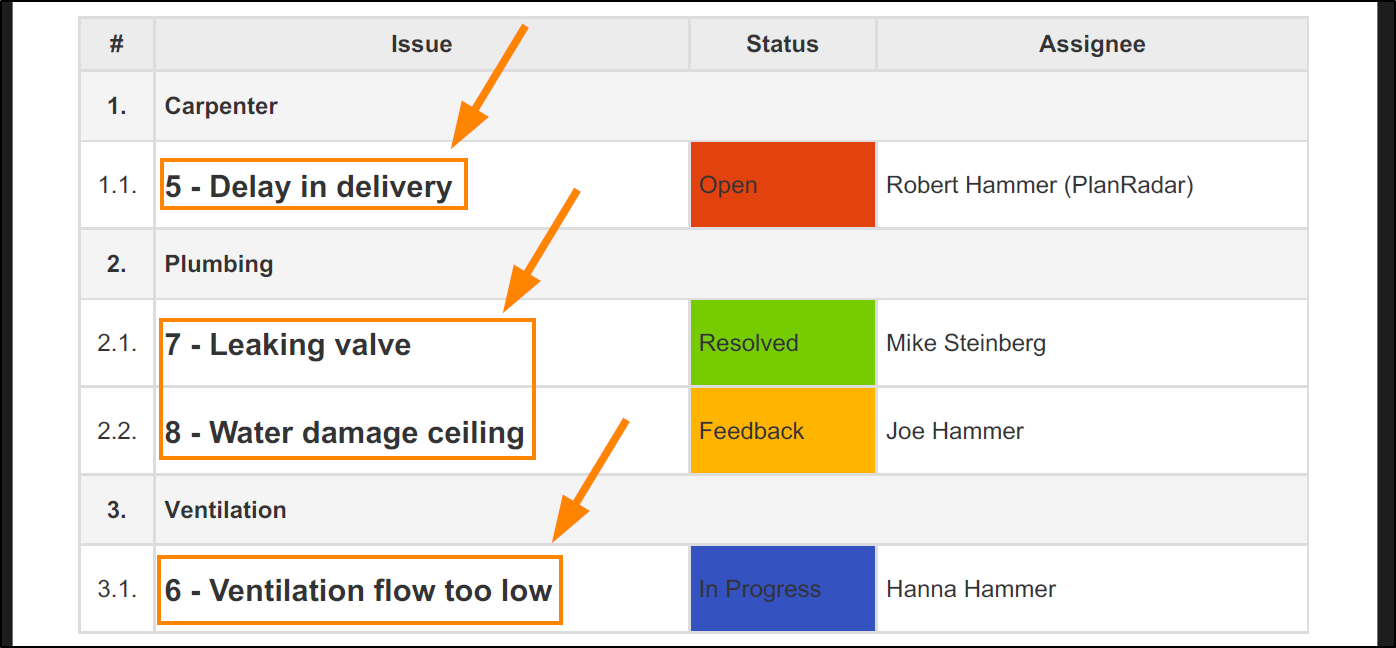

8. In the report the table looks like this:
