Overview

Image points on a run can be selected to view the corresponding 360° image.

View 360° images, change the viewing angle, select a different time/run of the same image point and more.

Compare mode enables side-by-side display of two 360° images from different runs, making it easy to see differences between two points in time.

Read more about the PlanRadar SiteView feature.

Still images basically work the same like other 360° images from a run, except there is no Jump to Next/Previous image point of a Run. Read more in SiteView 360° Still Images.

Access & Permissions

SiteView is available for Starter, Pro and Enterprise accounts. Read more in Pricing and Subscription.
The feature only becomes available after you Activate SiteView in the Webapp.

To view and navigate 360° images, you need an in-house user with a role permission to view runs in SiteView.
To delete a run photo, you need a role permission to create runs in SiteView.
Read more in Permissions.

Subcontractors and watchers can see all runs of their projects. Subcontractors can only see tickets that are assigned to them or if they are set as receivers.
Read more in User Types.

How to access SiteView

  1. Click SiteView

  1. Tap SiteView


Also see View & Manage Runs > Select a Layer and > View Runs.

Image Points & 360° Images

Image Point Icons

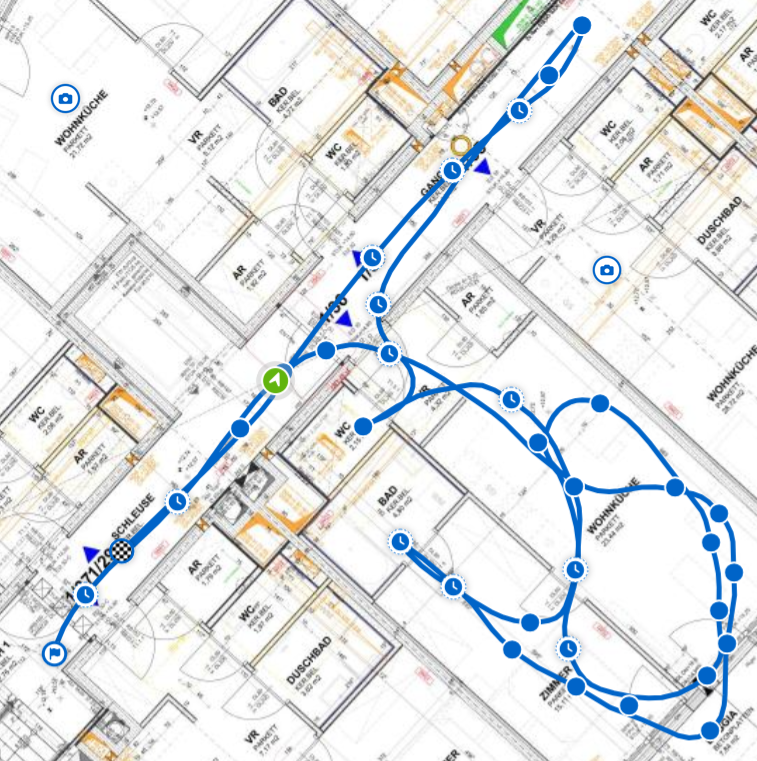

There are five icons to visualise the state of an image point on the plan:

Start position: Where the recording of the run began.
Time machine: Combined image points from multiple runs in different points in time.
Normal image point: Contains a single 360° image
End position: Where the recording of the run ended.
Selected image point: Indicates the current viewing direction of the 360° image.
Still image Single still image taken manually without a run.
Selected still image Currently selected still image.

Image point icons are red instead of blue when the image point has at least one ticket or at least one run photo.
Also see Add Tickets to 360° Images in the Webapp and Run Photos on 360° Images below.

Run photos do not have their own icon on the plan. They sit inside the 360° image of an image point, which turns red.

View a 360° Image

Depending on your zoom level and the number of image points on the plan, some image points may not be displayed until you zoom in further or select a specific run.

To view a 360° Image:

  1. Click on any image point to select it.
  2. The 360° image is loads on the right side next to the plan.

  1. Tap on any image point to select it.
  2. The 360° image is displayed under the plan.

Change Viewing Angle

To change the viewing angel use drag & drop on the image:

Select Different Time/Run

If you selected a time machine image point (combined image points from multiple runs) you can navigate through them with the controls on the bottom (in the Webapp):

  1. Hover over a segment in the time line to see the thumbnail, date and time of the image.
  2. Click on a segment to view the corresponding 360° image.
  3. OR use the arrow buttons to jump to the next/previous segment.

Maximise the Image

To maximise the image by minimising the plan:

  1. Click the minimise icon

To show the plan on the left and the image on the right again:

  1. Click the maximise icon

View in Fullscreen

To view images in full screen:

  1. Click the maximise icon

To close the full screen mode:

  1. Click the minimise icon
  2. OR press ESC on your keyboard

  1. Tap the maximise icon

To show the plan on the top and the image on the bottom again:

  1. Tap the minimise icon

Switch to Run

If you selected 'Show all runs', then you can load the run of the currently viewed 360° image:

  1. Click the arrow icon to expand the info box.
  2. Click Switch to run

If you opened plan view without selecting a run and see all runs of the layer, then you can load the run of the currently viewed 360° image:

  1. Tap Switch to run

Jump to Next/Previous image point of a Run

If you selected a specific run you can quickly jump to the next or previous image point to view it's 360° image.

To jump to the next image point:

  1. Click the right arrow

  1. Tap the right arrow

To jump to the previous image point:

  1. Click the left arrow

  1. Tap the left arrow

These arrow buttons are not available if you have selected 'Show all runs'.

Close the Image Viewer

To close the image viewer and view the maximised plan:

  1. Click the X button

  1. Tap on the plan (but not on an image point)

Run Photos on 360° Images

Run photos are photos taken with a phone camera while the run was recorded. Each one sits inside the 360° image of the image point it belongs to.

Read more in SiteView > Run Photo and Create a Run with the PlanRadar Mobile App > Take Photos During the Recording.

Run photos are shown in the standard 360° view only. They are not displayed in the time machine or in compare mode. Image points that have photos are still red in those views.

View Run Photos

To see the run photos of a run in the list:

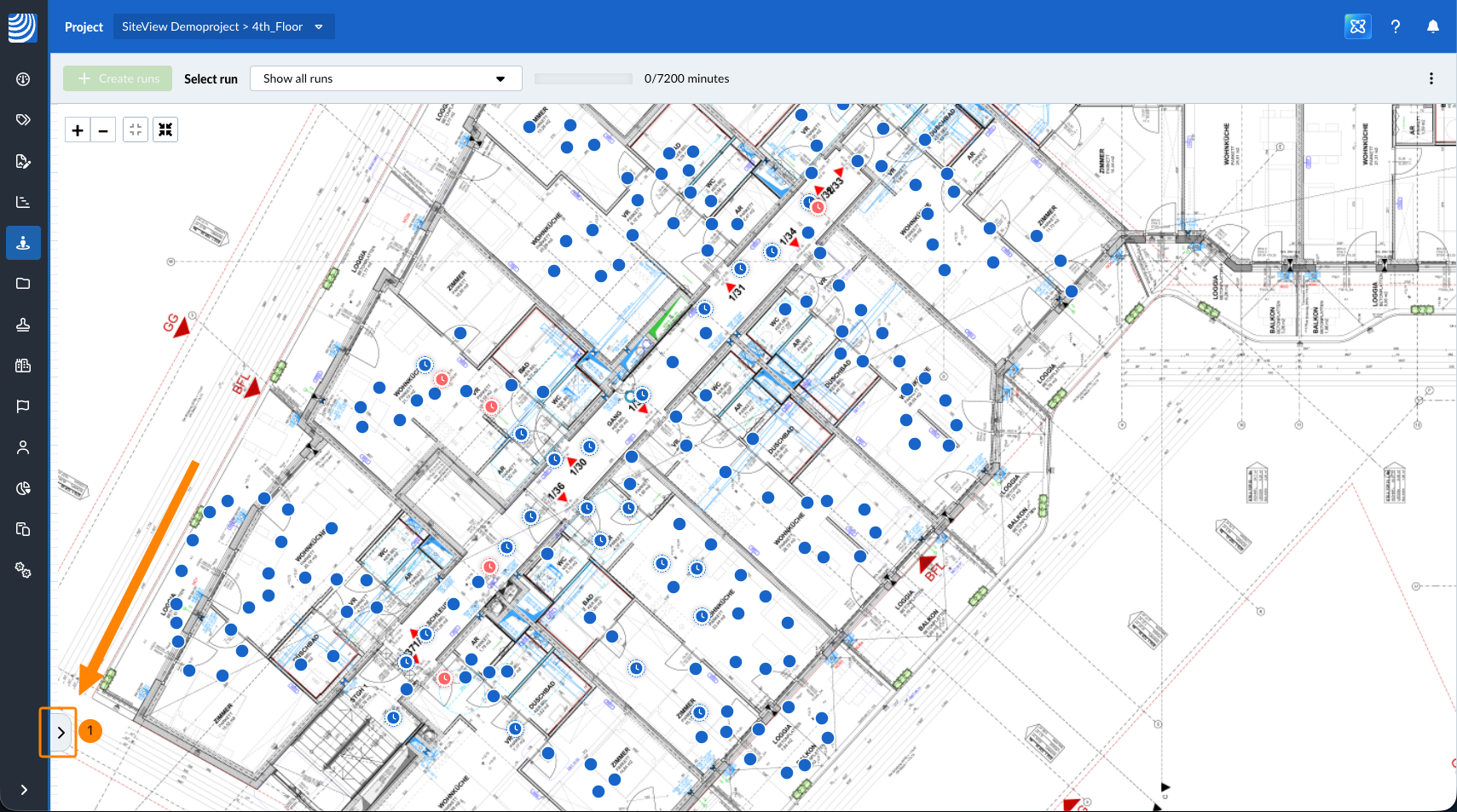

  1. Click the expand button

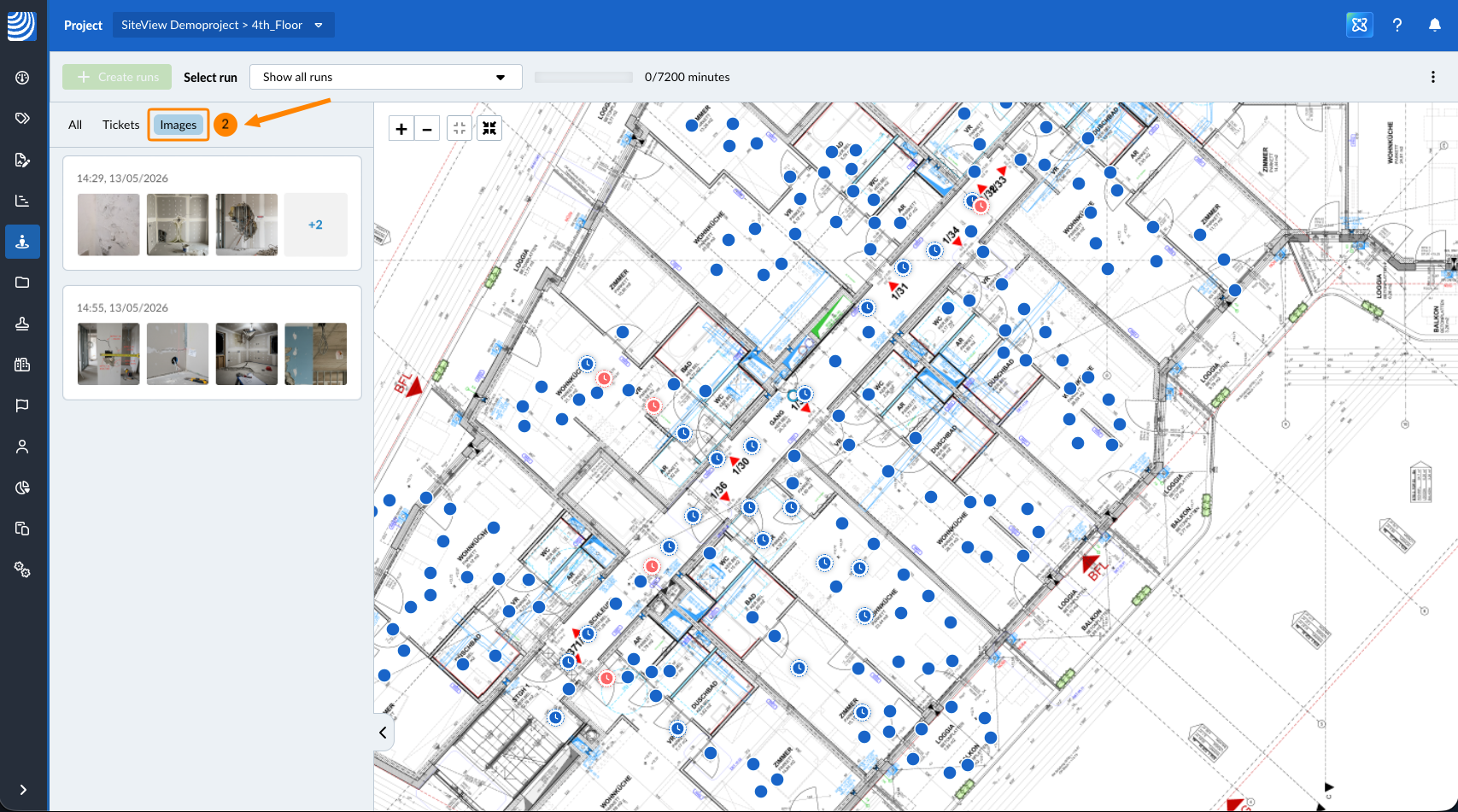

  2. Click Images

An image card holds the run photos of one image point and shows up to four thumbnails. If the image point has more, the last tile shows how many are not displayed.

Click All to see image cards and ticket cards together. Read more in Add Tickets to 360° Images in the Webapp.

To see all run photos of an image point:

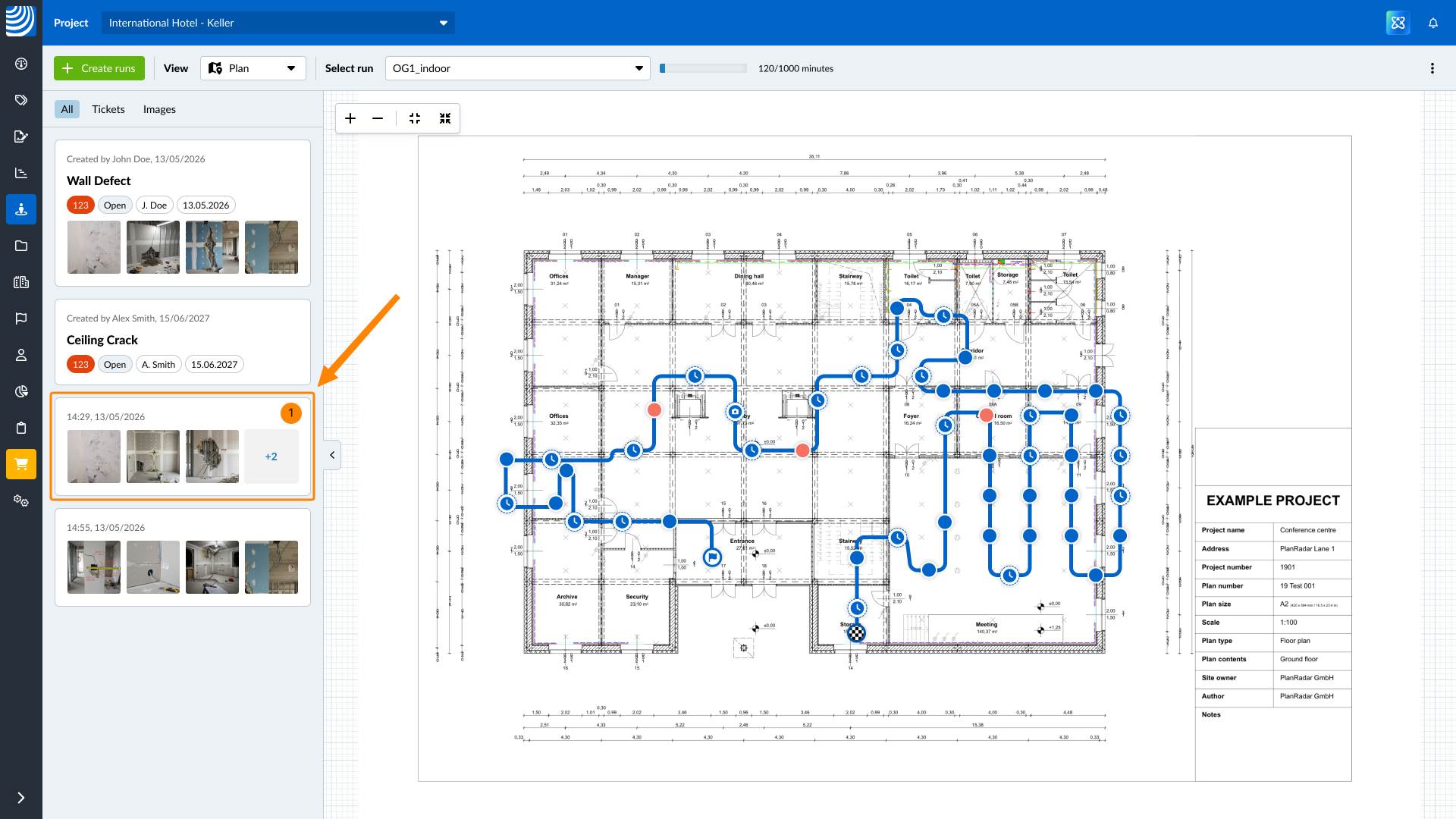

  1. Click an image card

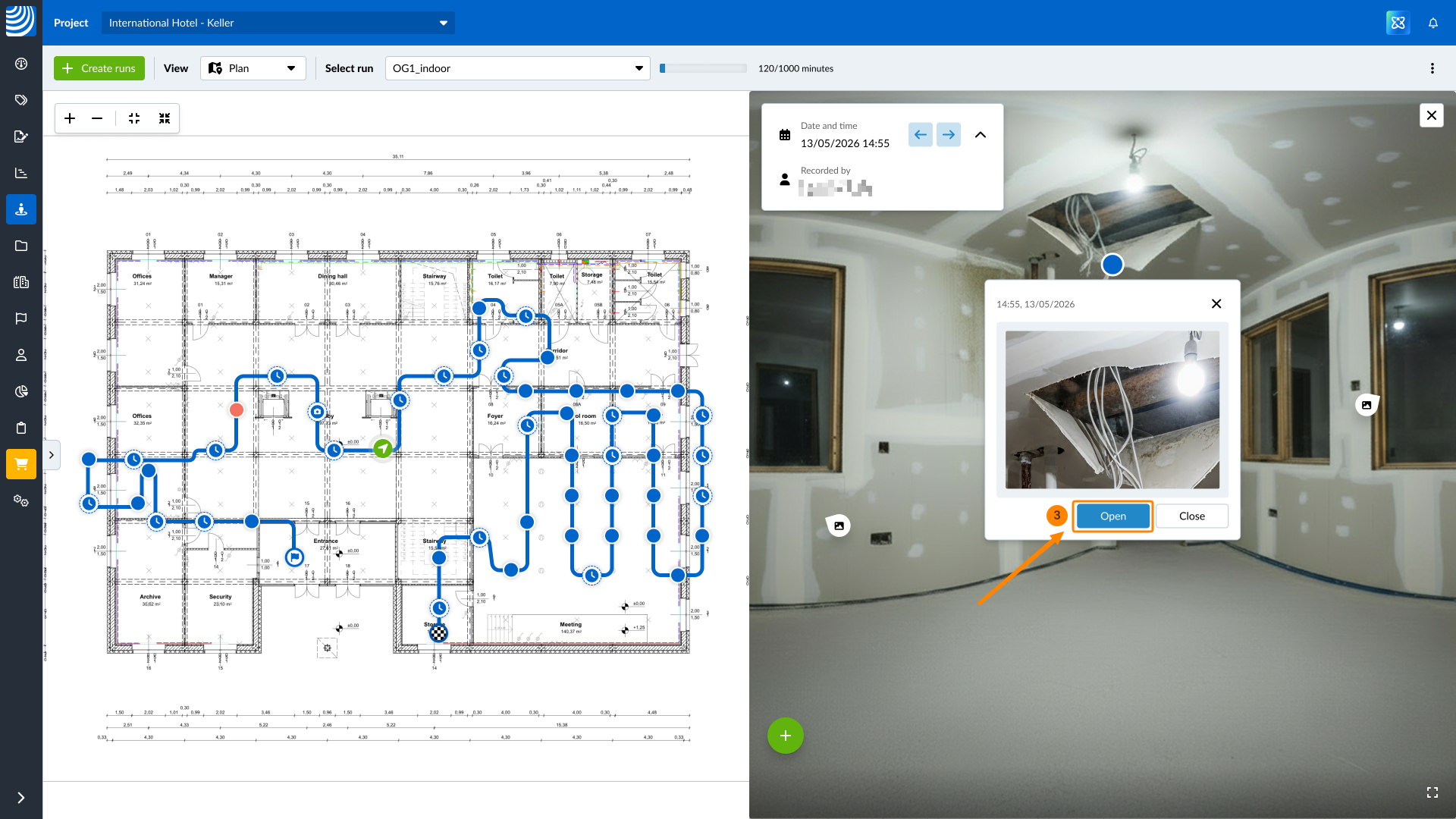

  2. Click a photo bubble on the 360° image
  3. Click Open

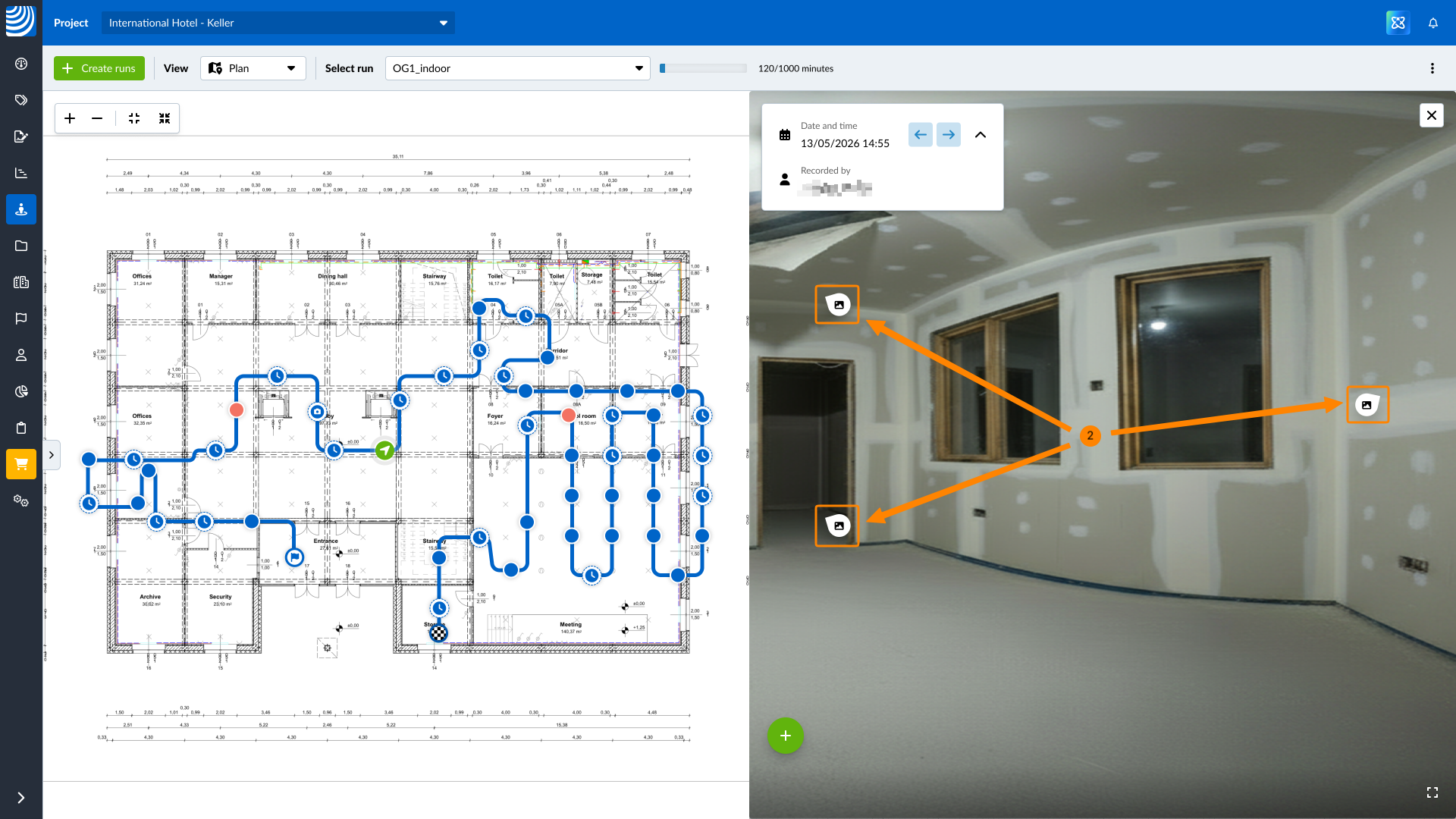

An icon at the edge of the 360° image points to a photo that is out of view. Click it to turn to that photo.

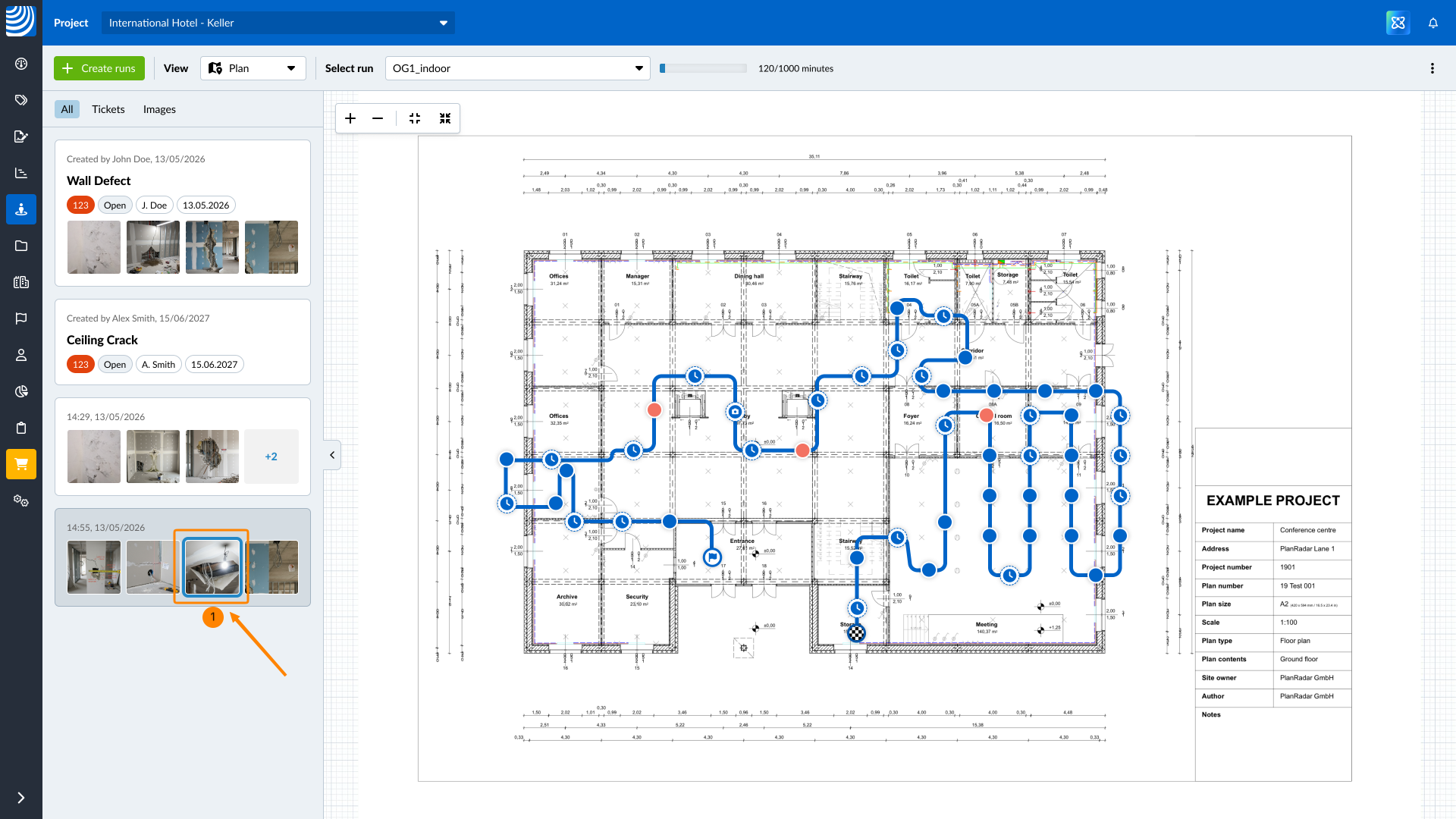

To open one specific run photo from the list:

  1. Click a thumbnail on an image card
  2. Click Open

If the image point has several run photos, use the thumbnails in the viewer to move between them.

The viewer also offers Download to save a copy of the photo.

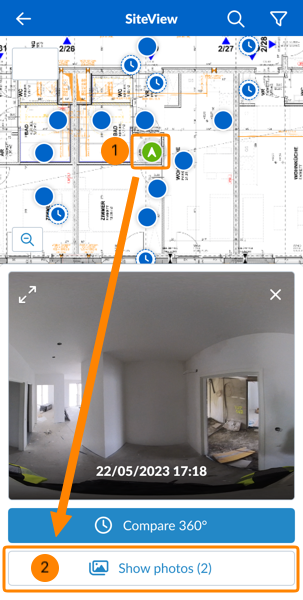

To open a run photo:

  1. Tap an image point that has photos
  2. Tap Show photos (N) below the preview

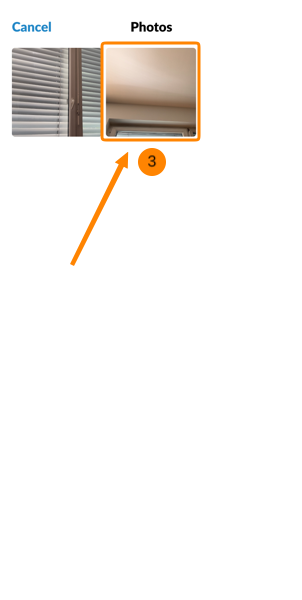

  3. Tap a photo to open it

Delete a Run Photo

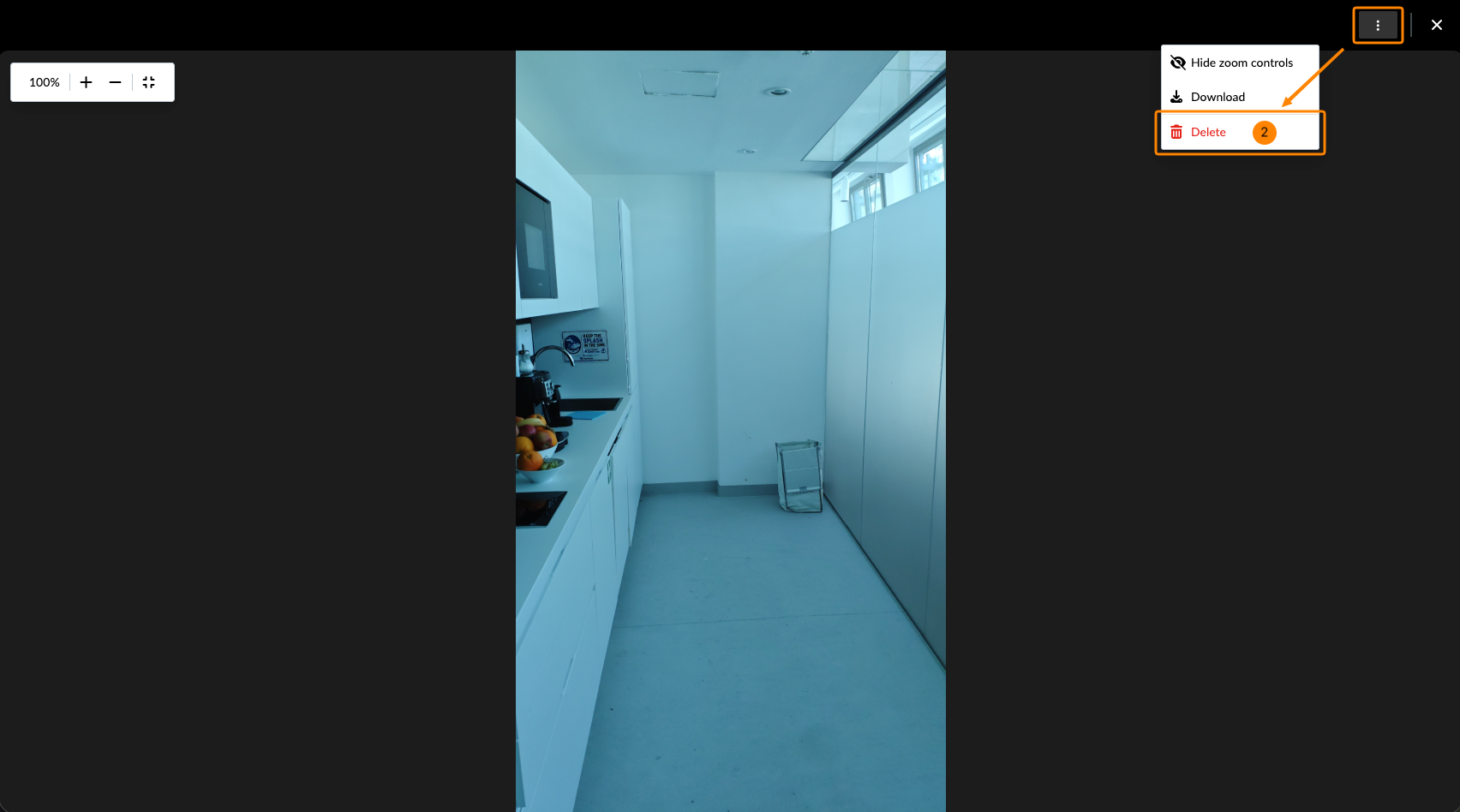

To delete a run photo after the run has been uploaded and processed (only possible in the Webapp):

  1. Open the photo as described above

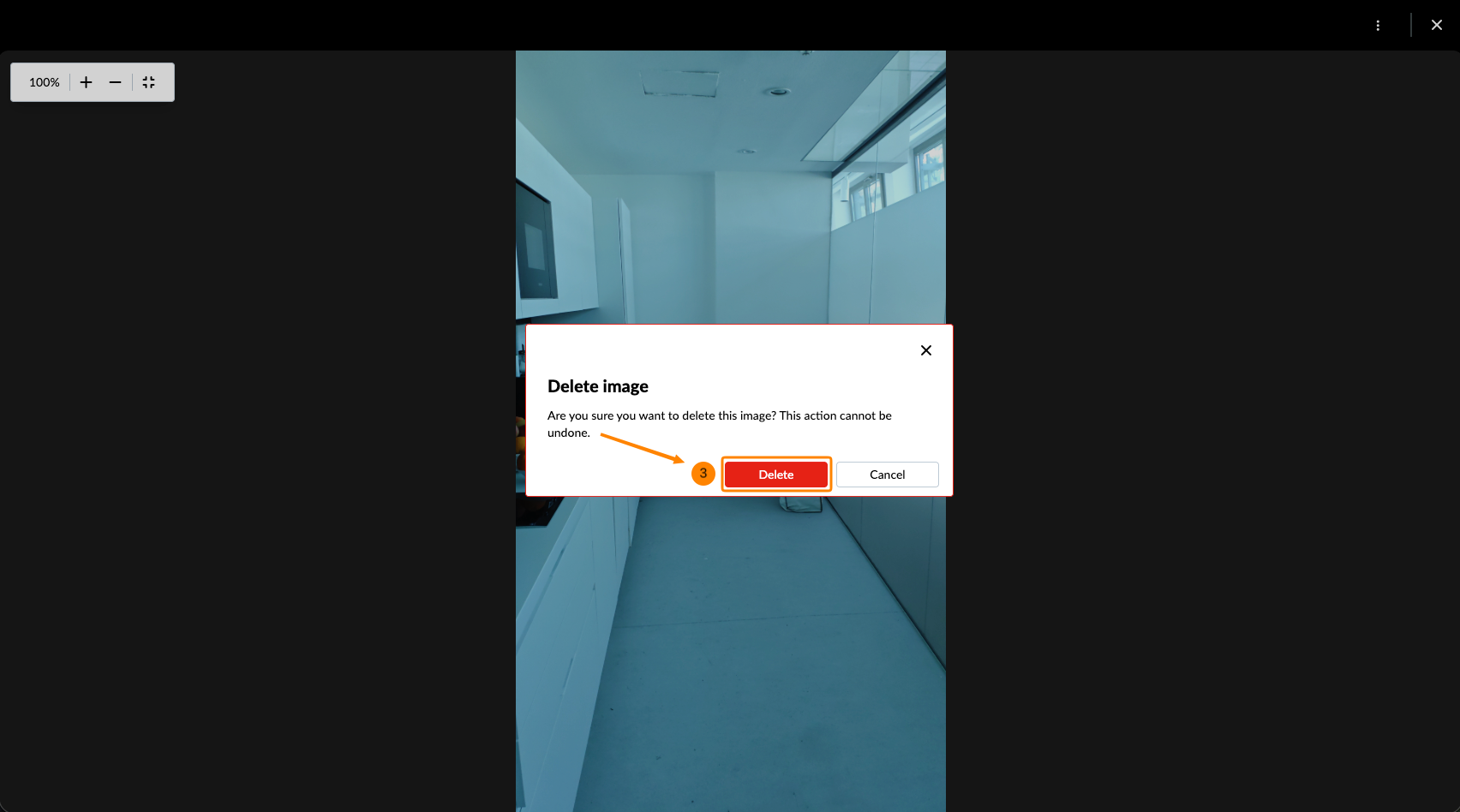

  2. Open the More menu, then click Delete
  3. Click Delete to confirm

Compare Mode

Compare mode enables side-by-side display of two 360° images from different runs, making it easy to see differences between two points in time. Runs must be at least one hour apart.

To switch to compare mode:

  1. Select a time machine image point
  2. Click the arrow icon to expand the info box.
  3. Click Compare 360°

Initially you see the newest image on the left side and the oldest image on the right side. You can Select Different Time/Run as described above.

  1. Select a time machine image point
  2. Tap Compare 360°


  3. Tap Select 360°


  4. Select a run
  5. See both 360° images next to each other

Lock/Unlock Viewing Angles

The viewing angles of both 360° images are synchronized by default. That means if you change the viewing angle of one image, the other image will simultaneously do the same rotation.

Unlock the viewing angles to allow separate rotation:

  1. Click the lock button

  1. Tap the lock button

To lock the viewing angles, to synchronise the viewing angles automatically:

  1. Click the lock button again

  1. Click the lock button again
