Overview
Switch to Augmented Reality (AR) view mode in the BIM viewer in the mobile app to compare your plan with the actual build, look behind walls, verify technical building equipment is installed correctly, etc.

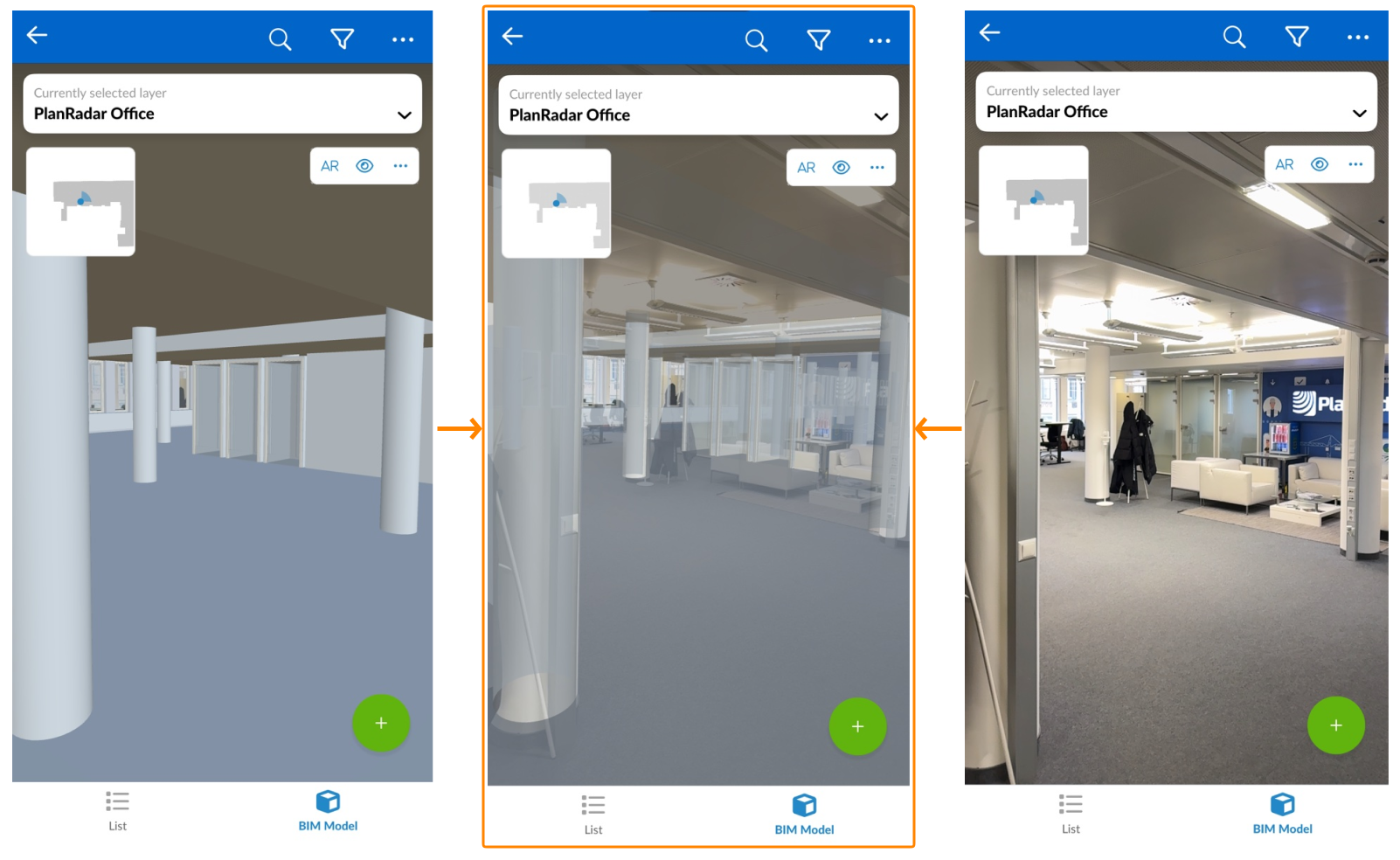

You simultaneously see what your mobile device camera captures live and an overlay of the BIM model.
Read about the BIM Viewer.
Access & Permissions
To access the BIM Viewer, you need an in-house user with the user permission 'Tickets & Project Reports'. Read more in Permissions.
The BIM Viewer is available on Pro and Enterprise accounts. Read more in Pricing and Subscription.
How to access the BIM Viewer

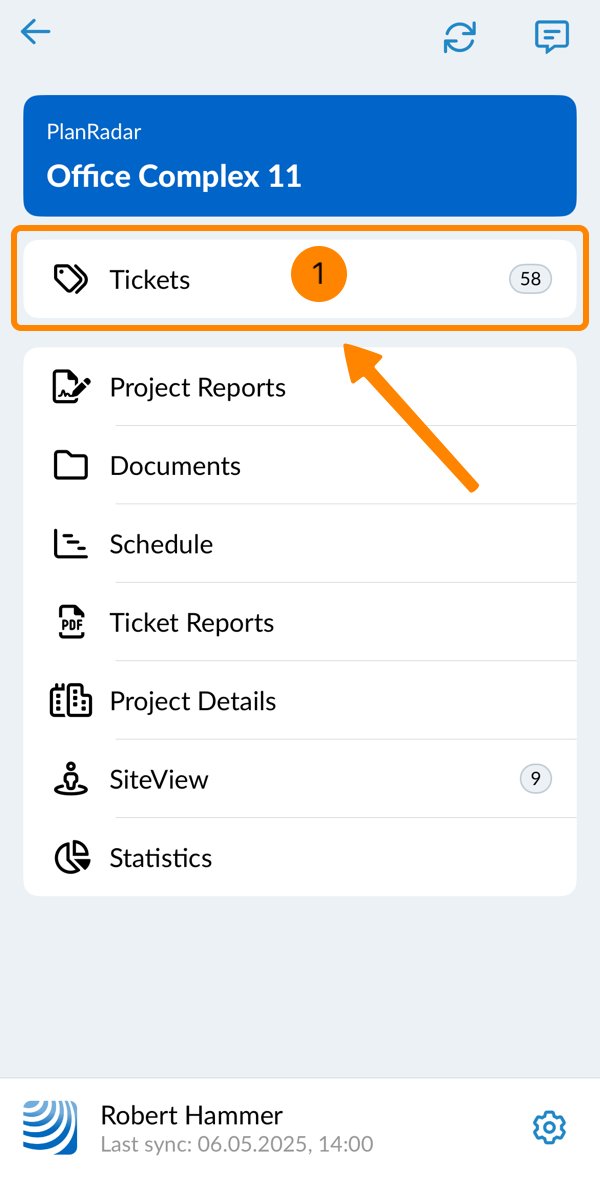

- Tap Tickets

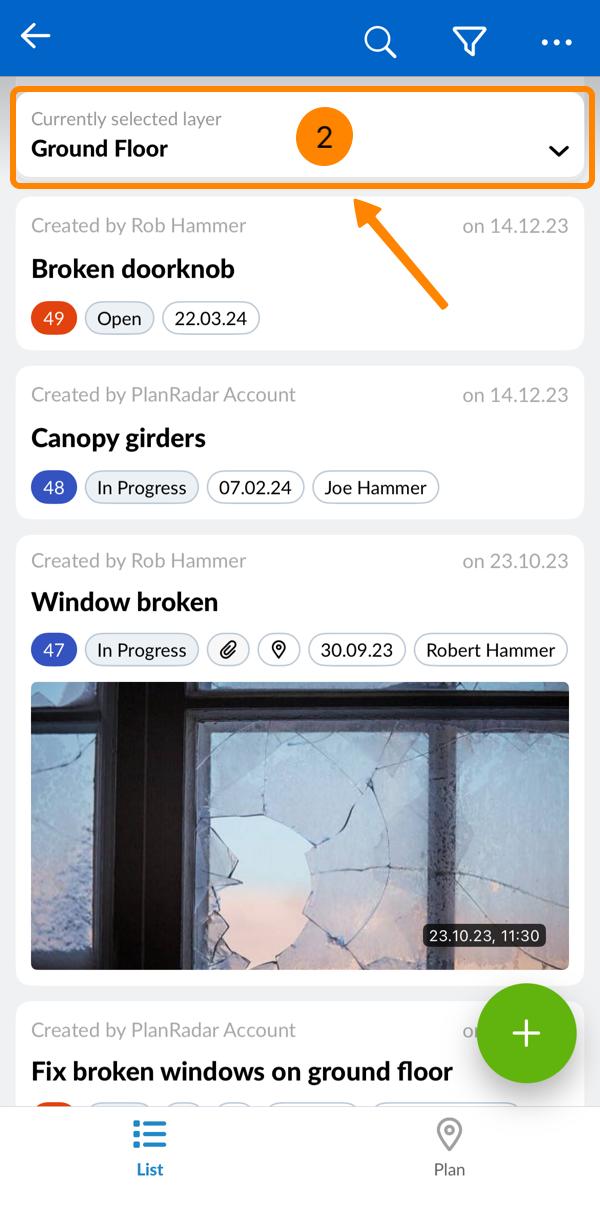

- Open the layer selector
- Tap on a layer with a BIM model (marked by a cube icon)

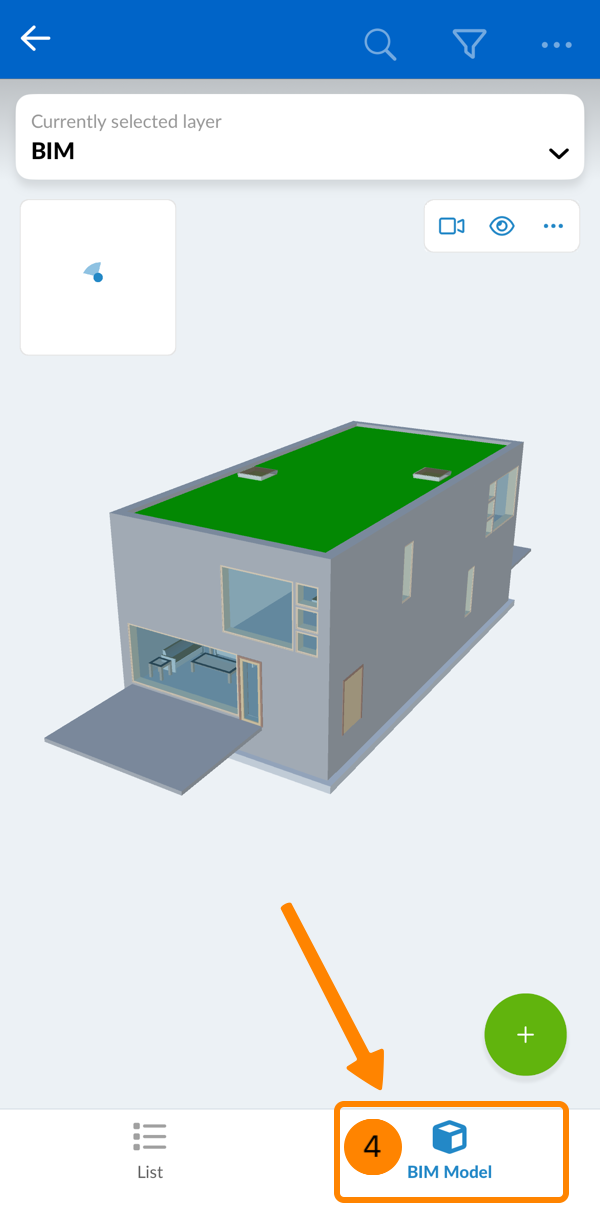

- Tap BIM Model
Enter AR Mode
Make sure you are standing in the same physical location that you are viewing in the BIM model, before entering AR mode and aligning the BIM model.

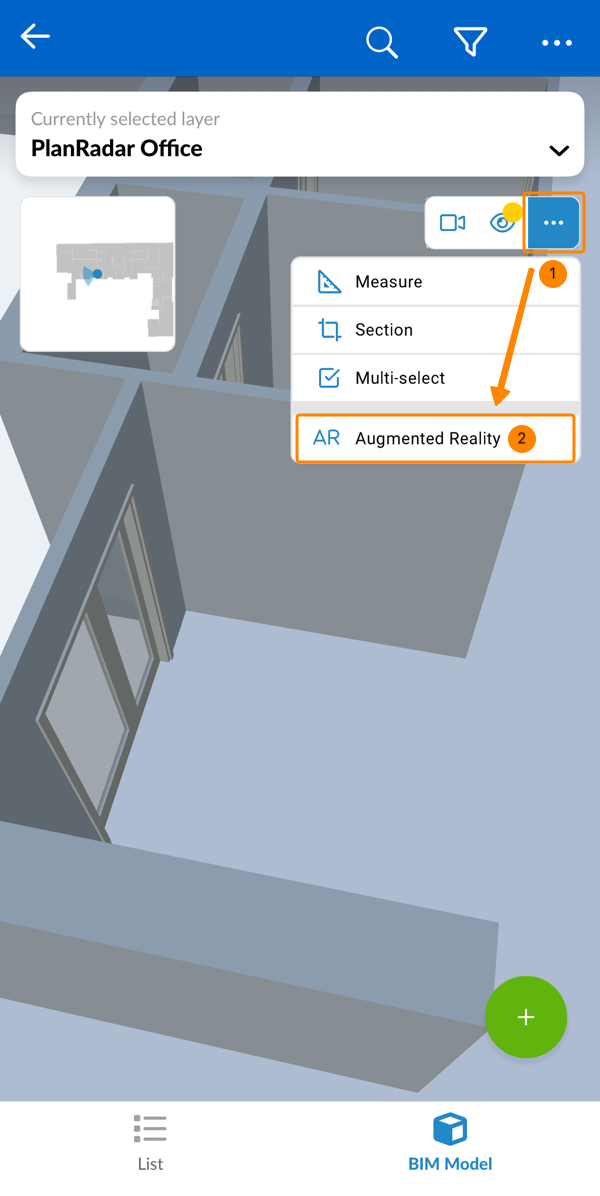

To enter AR mode:
- Open the More menu
- Tap Augmented Reality
Align BIM Model with Camera
The alignment process uses two reference points to match the BIM model to your real-world surroundings.
To align the BIM model:

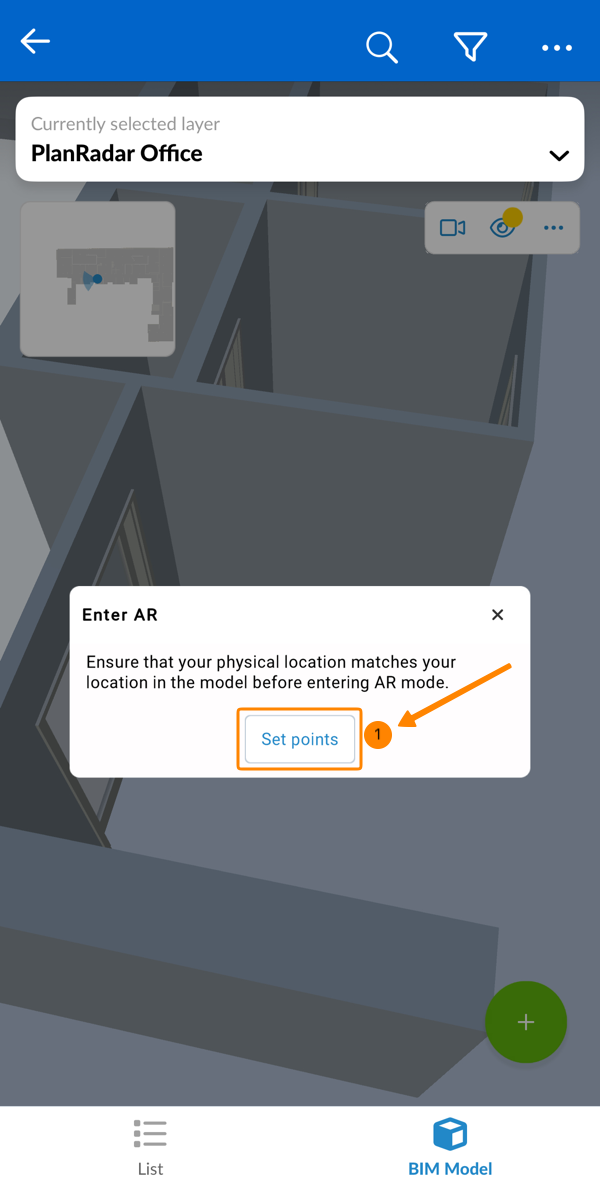

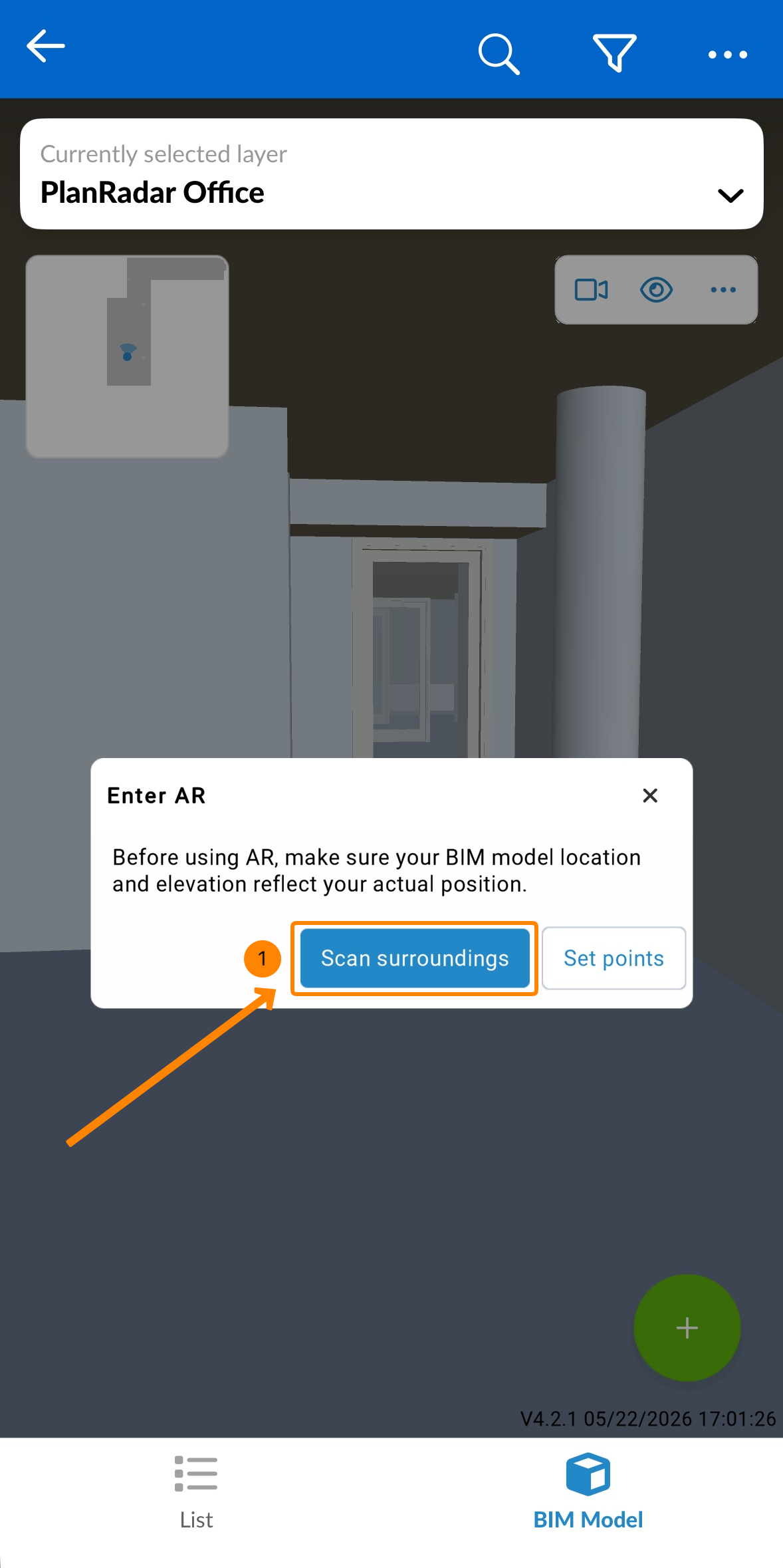

- Tap Set points to start the alignment process.
-

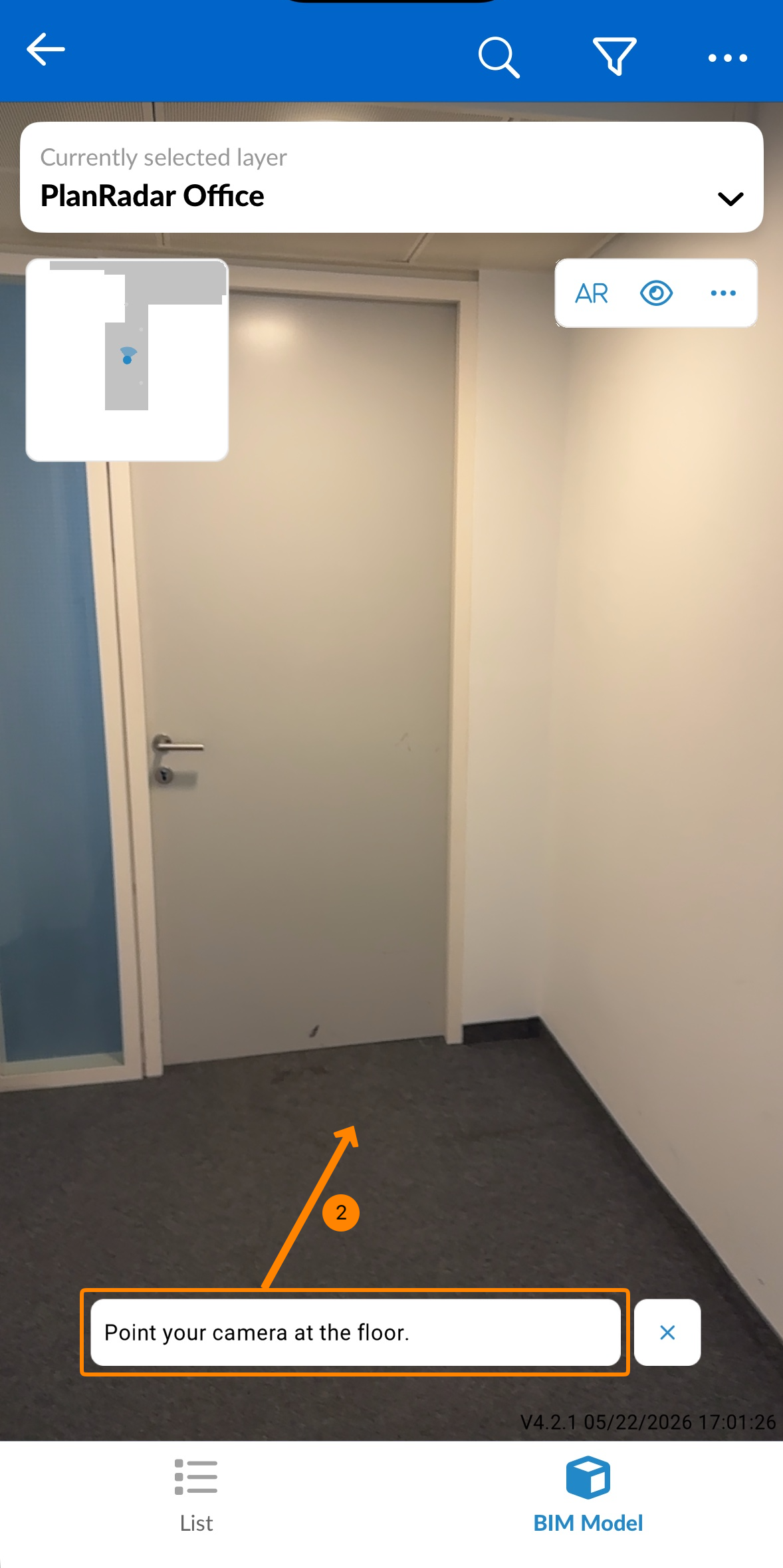

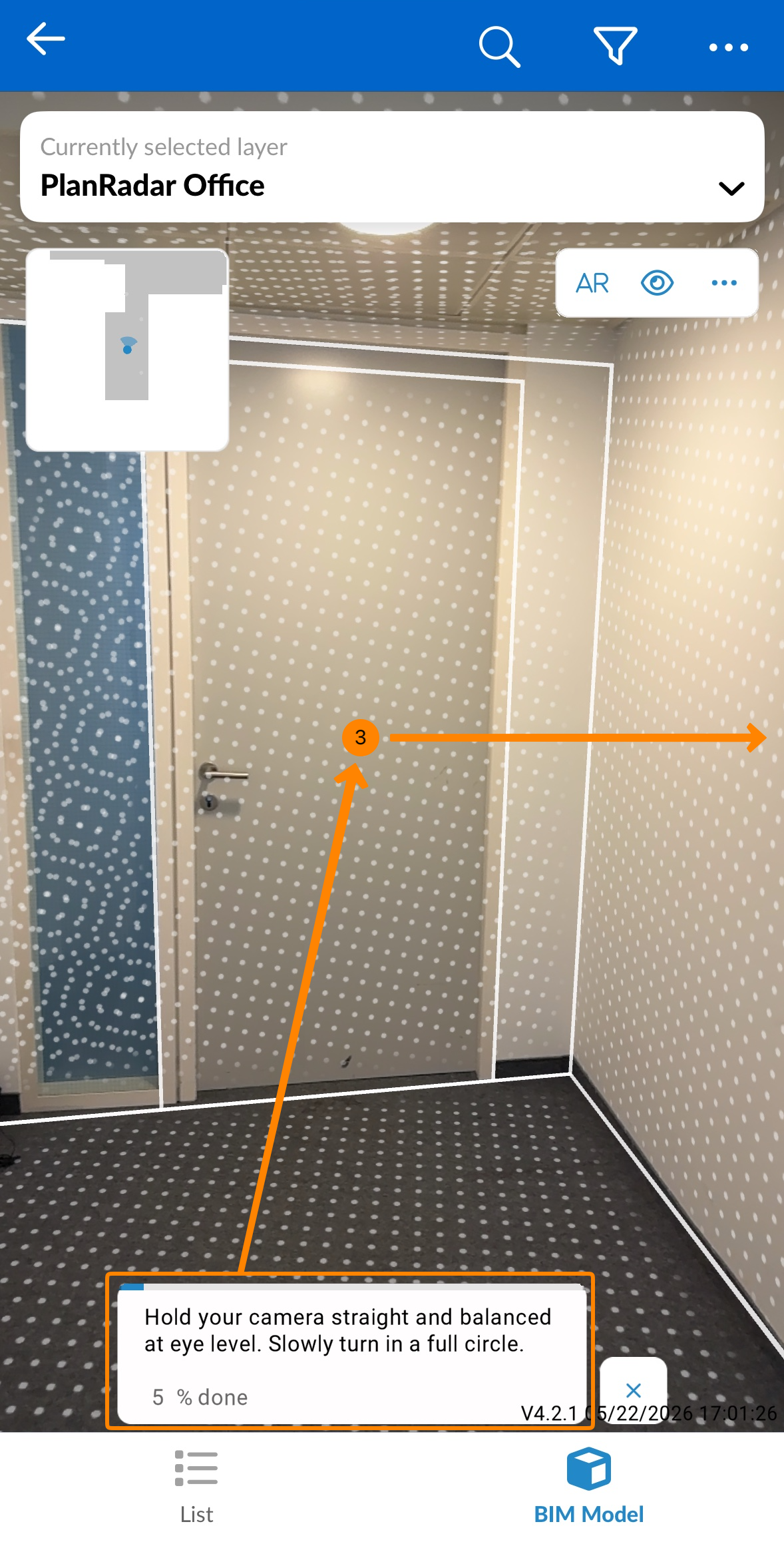

Set the first point in the BIM model
Drag the marker to a clearly visible corner where the floor meets the wall, approximately 2–3 meters away from your current position. -

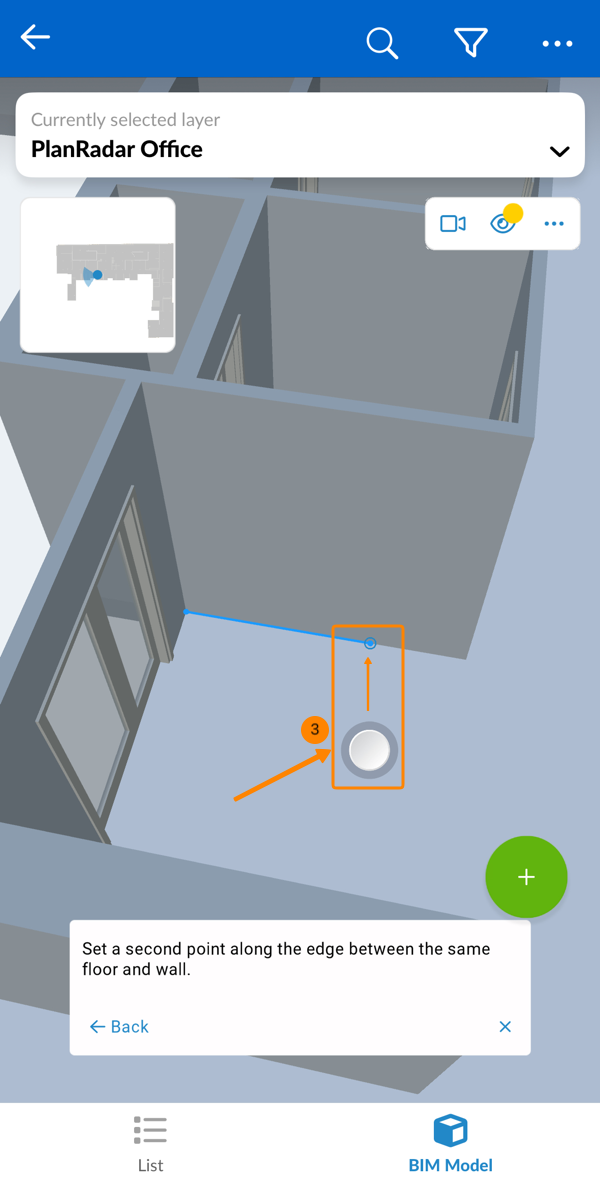

Set the second point in the BIM model
Drag the marker along the same floor–wall edge as the first point, at a different position. -

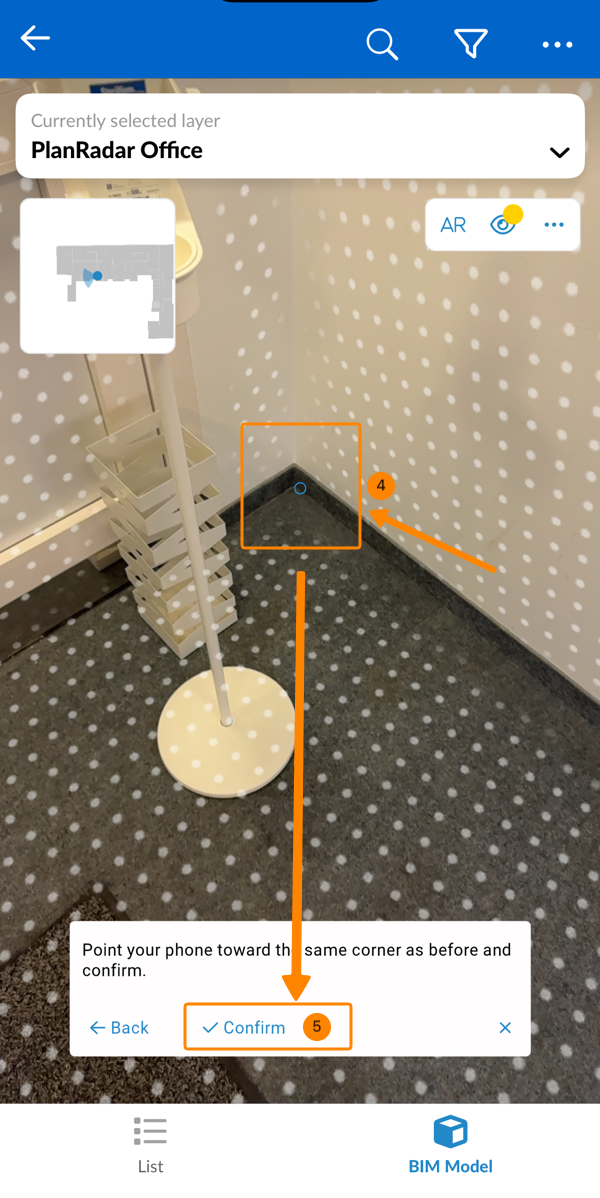

Align the camera with the first point
Point your mobile device toward the same physical corner you selected as the first point. - Tap Confirm
-

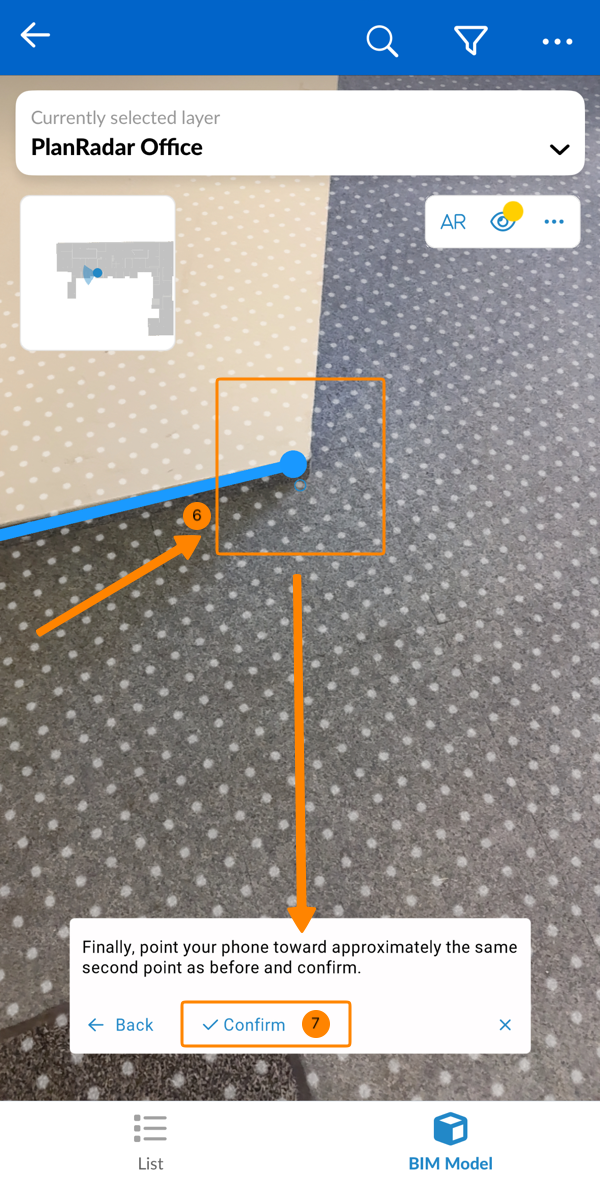

Align the camera with the second point
Point your mobile device toward the physical location corresponding to the second point. - Tap Confirm
Once completed, the BIM model should align with your real-world view.
If the alignment is slightly off, you can fine-tune it manually using the adjustment controls as described below in Manually Adjust Alignement.
Look Around in AR Mode
Now you are in AR mode and can look around just by moving your mobile device as if you were taking a photo or video. The BIM model will automatically stay alligned.

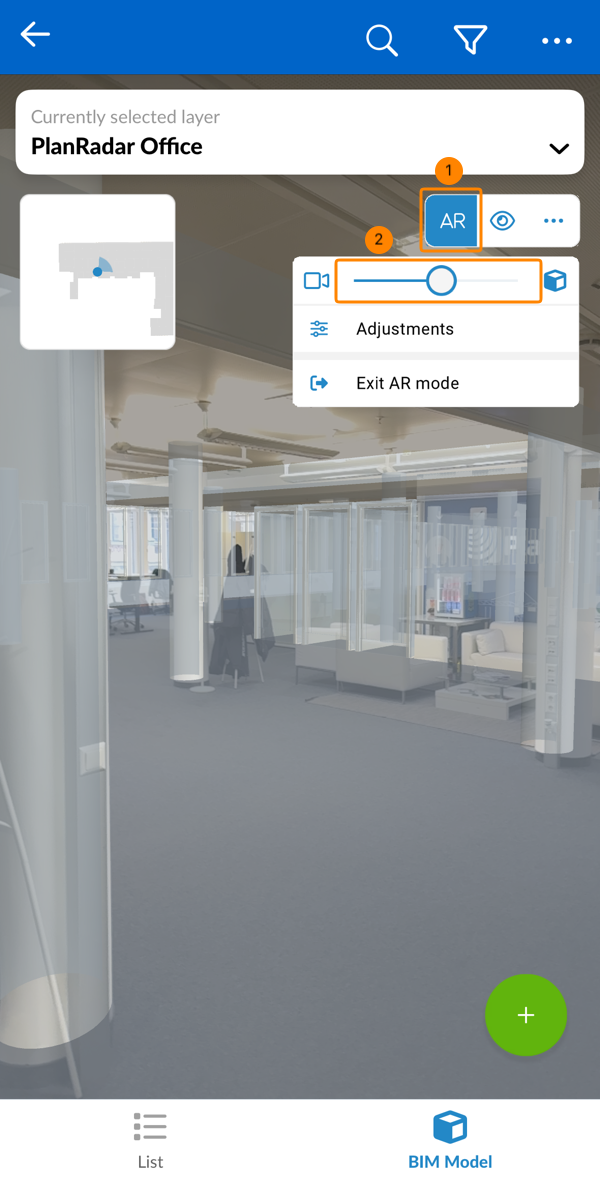

Adjust Transparency
You simultaneously see what your mobile device camera captures live and an overlay of the BIM model. You can adjust the transparency to focus more on either the camera view or the BIM model.
To do so:

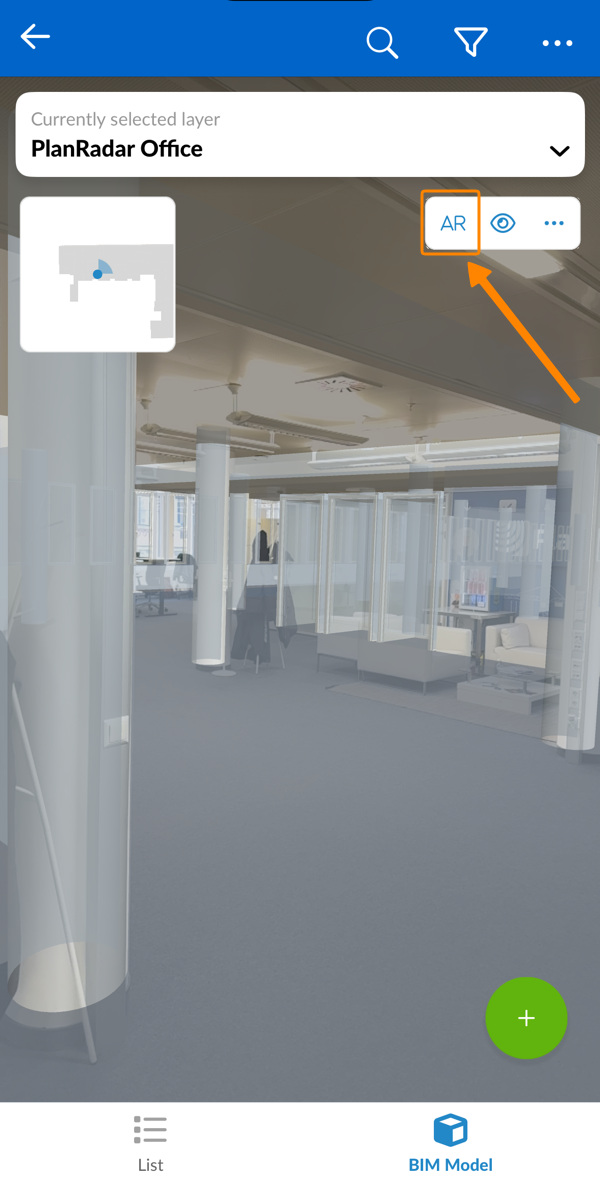

- Tap AR
- Drag the slider.
Move it to the left to see more from the camera and less of the BIM model.
Move it to the right to see more of the BIM model and less from the camera.
Manually Adjust Alignement
You can optionally adjust the placement of the BIM model on your camera feed on X, Y, and Z axis and by rotation. This is only necessary in case the automatically aligned positions are a bit off.
To do so:

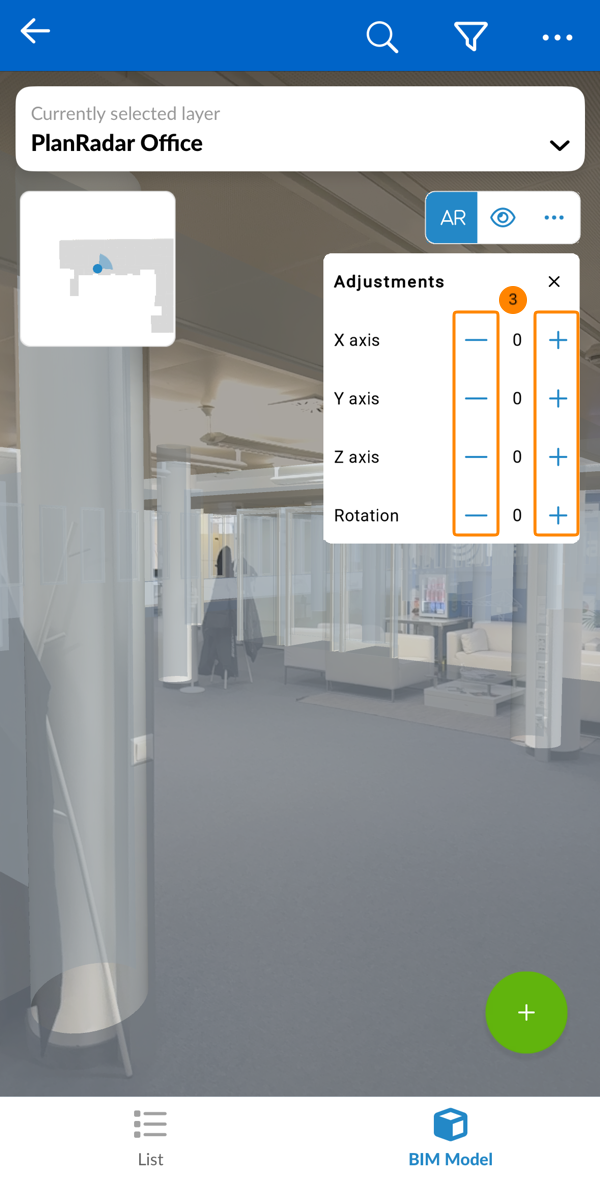

- Tap AR
- Tap Adjustments
- Tap + or - to move the BIM model up or down on the corresponding axis or to rotate it
Exit AR Mode
Exiting AR will not save the alignment. You will need to Align BIM Model with Camera again if you re-enter AR mode. Leaving the BIM viewer or switching model/layer will automatically exit AR mode.
To exit AR mode:
- Tap AR
- Tap Exit AR mode
